New models added to PSW Series
Posted on January 25 2013GW INSTEK HAS EXPANDED THE PSW SERIES WITH THE ADDITION OF THREE NEW MODELS:
PSW 160-7.2 360W
PSW 160-14.4 720W
PSW 160-21.6 1080W
SPECIFICATIONS BELOW:

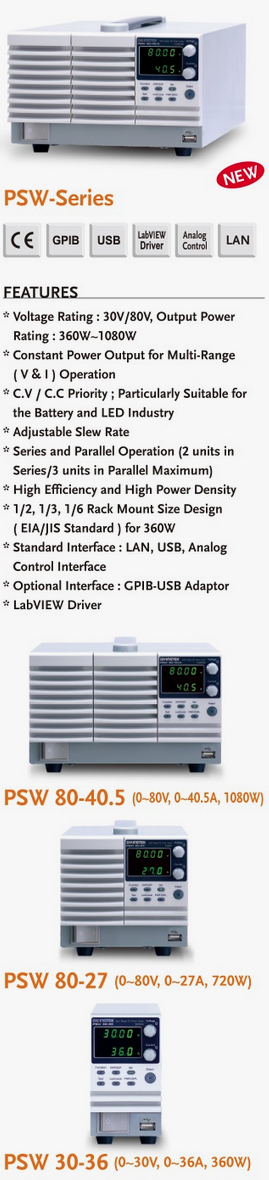

The PSW-Series is a single output multi-range programmable switching DC Power Supply coverring a power range up to 1080W. This series of products include six models with the combination of 30V and 80V rated voltages and 360W, 720W and 1080W maximum output powers. The multi-range. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range. As the PSW-Series can be connedcted in series for maximum 2 units or in parallel for maximum 3 units, the capability of connecting multiple PSW-Series significantly reduces the user's investment for various power supply products to accommodate the projects with different power requirements.
The C.V/C.C priority selection of the PSW-Series is a very useful feature for DUT protection. The conventional power supply normally operates under C.V mode when the power output is turned on. This could bring a high inrush current to the capactive load or current-intensive load at the power output-on stage. Taking the I-V curve verification of LED as an example, it becomes a very challenging task to perform this measurement using a conventional power supply. With LED connected to a power supply under C.V mode as the initial settin, when the power output is turned on the the voltages rises to the LED forward voltage the current will suddenly peak up and exceed the preset value of current limit. Upon detecting this high current, the power supply starts the transition from C.V mode to C.C mode. Though the current becomes stable after the C.C mode is activated, the current spike occured ad the C.V and C.C crossover point may possibly damage the DUT. At the power output-on stage, the PSW-Series is able to run under C.C priority to limit the current spike occurred at the threshold voltage and therefore protects DUT from the inrush current damage.
The adjustable slew rate of the PSW-Series allows user to set for either output voltage or output current a specific rise time at the low to high level transition, and a specific fall time at the high to low level transition. This facilitates the characteristic verification of a DUT during voltage or current level changes with controllagle slew rates. The manufacturing tests of lighting device of large capacitance capacitor during power output-on are mostly associated with the occurrence of high surge current, which can greatly reduce the life time of the DUT. To prevent inrush current from damaging current-t intensive devices, a smooth and slow voltage transition during power On-Off can significantly reduce the spike current and protect the device from high current damage.
The OVP and the OCP protections are provided with the PSW-Series. Both OVP and OCP levels can be selected within the range of 10% to 110%, with default level set at 110%, of the rated voltage/current of the power supply. When any of the protection levels is tripped, the power output will be switched off to protect the DUT. The PSW-Series provides USB Host/Device and LAN interfaces as standard and GPIB-USB adaptors as optional. An analog control/monitoring connector is also available at the rear panel for external control of power On/Off and external monitoring of power output Voltage and Current .
Specifications | |||||||||
PSW-30-36 | PSW 30-72 | PSW 30-108 | PSW 80-13.5 | PSW 80-27 | PSW 80-40.5 | PSW 160-7.2 | PSW 14.4 | PSW 160-21.6 | |
Output Rating | |||||||||
Voltage Current Power |
0~30V 0~36A 360W |
0~30V 0~72A 720W |
0~30V 0~108A 1080W |
0~80V 0~13.5A 360W |
0~80V 0~27A 720W |
0~80V 0~40.5A 1080W |
0~160V 0~7.2A 360W |
0~160V 0~14.4A 720W |
0~160V 0~21.6A 1080W |
Regulation(CV) | |||||||||
Load Line |
0.05% of rating +5mV 0.05% of rating +3mV |
||||||||
Regulation(CC) | |||||||||
Load Line |
0.01% of rating +5mA 0.01% of rating +5mA |
||||||||
Ripple & Noise (Noise Bandwidth 20MHz; Ripple Bandwidth=1MHz) | |||||||||
CV p-p |
60mV 7mV 72mA |
80mV 11mV 144mA |
100mV 14mV 216mA |
60mV 7mV 27mA |
80mV 11mV 54mA |
100mV 14mV 81mA |
60mV 12mV 15mA |
150mV 7mV 30mA |
100mV 20mV 45mA |
Programming Accuracy | |||||||||
Voltage Current |
0.05%+10mV 0.1%+30mA |
0.05%+10mV 0.1%+60mA |
0.1%+10mV 0.1%+100mA |
0.05%+10mV 0.1%+30mA |
0.1%+10mV 0.1%+30mA |
0.1%+10mV 0.1%+40mA |
0.1%+10mV 0.1%+5mA |
0.1%+10mV 0.1%+15mA |
0.1%+10mV 0.1%+20mA |
Readback Accuracy | |||||||||
Voltage Current |
0.1%+10mV 0.1%+30mA |
0.1%+60mV 0.1%+30mA |
0.1%+10mV 0.1%+100mA |
0.1%+10mV 0.1%+10mA |
0.1%+10mV 0.1%+30mA |
0.1%+10mV 0.1%+40mA |
0.1%+20mV 0.1%+5mA |
0.1%+10mV 0.1%+15mA |
0.1%+10mV 0.1%+20mA |
Response Time | |||||||||
Raise Time |
50ms |
50ms |
50ms 50ms 500ms 1ms |
50ms 50ms 500ms 1ms |
50ms 50ms 500ms 1ms |
50ms 50ms 500ms 1ms |
100ms 100ms 1000ms 2ms |
100ms 100ms 1000ms 2ms |
100ms 100ms 1000ms 2ms |
Programming Resolution (By PC Remote Control Mode) | |||||||||
Voltage Current |
1mV 1mA |
1mV 2mA |
1mV 3mA |
1mV 1mA |
1mV 2mA |
1mV 3mA |
3mV 1mA |
3mV 2mA |
3mV 3mA |
Measurement Resolution (By PC Remote Control Mode) | |||||||||
Voltage Current |
1mV 1mA |
1mV 2mA |
1mV 3mA |
1mV 1mA |
1mV 2mA |
1mV 3mA |
3mV 1mA |
3mV 2mA |
3mV 3mA |
Series And Parallel Capability | |||||||||
Parallel Operation Series Operation |
Up to 3 units including the master unit Up to 2 units including the master unit |
||||||||
Protection Function | |||||||||
OVP OCP OHP |
10% to 110% of rated voltage range 10% to 110% of rated current range Activated by elecated internal temperatures |
||||||||
Front Panel Display Accuracy | |||||||||
Voltage Current |
0.1%±2digits 0.1%±4digits |
0.1%±2digits 0.1%±7digits |
0.1%±2digits 0.1%±1digits |
0.1%±2digits 0.1%±2digits |
0.1%±2digits 0.1%±4digits |
0.1%±2digits 0.1%±5digits |
0.1%±1digits 0.1%±5digits |
0.1%±1digits 0.1%±3digits |
0.1%±1digits 0.1%±3digits |
Environment Condition | |||||||||
Operation Temp Storage Temp Operating Humidity Storage Humidity |
0°C ~ 50°C |
||||||||
Read Back Temp Wefficient | |||||||||
Voltage Current |
100ppm/°C 200ppm/°C |
||||||||
Other | |||||||||
Analog Control Interface Fan Power Source Dimensions &Weight |
Yes USB/LAN/GPIB(Option) With thermal sensing control 85VAC-265VAC, 50/60Hz, single phase |
||||||||
71(W)x124(H) x350(D) mm; Approx. 3kg |
142.5(W)x124(H) x350(D) mm; Approx. 5kg |
214(W)x124(H) x350(D) mm; Approx. 7kg |
71(W)x124(H) x350(D) mm; Approx. 3kg |
142.5(W)x124(H) x350(D) mm; Approx. 5kg |
214(W)x124(H) x350(D) mm; Approx. 7kg |
71(W)x124(H) x350(D) mm; Approx. 3kg |
142.5(W)x124(H) x350(D) mm; Approx. 5kg |
214(W)x124(H) x350(D) mm; Approx. 7kg |
