Soken DAC-VCTT-6 - Instrument Transformer Test Set
Overview
Features
Specifications
Calibration

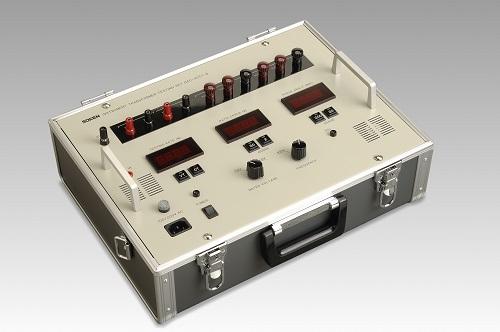

DAC-VCTT-6 is a suitable tester to measure errors of Instrument Current Transformer (CT) and Instrument Voltage Transformer (VT) precisely in the test site. Maintaining high accuracy, the tester has been designed to be solid, small, and easy to carry with simplified function as much as possible.
DAC-VCTT-6 is designable for the on-site tests and quality control tests for the production line.
- Aluminum Trunk Type, Compact in size and weight.
- Simple operation, fast measurement.
- Suitable for field test trip and
- quality control at the product line.
General
| Test Method | Equal Ratio Comparison Test Method with standard. | ||||
| Standard CT & VT | Provided as option | ||||
| VT under test | Rated Secondary voltage : 110V, 110/√3V | ||||
| CT under test | Rated Secondary Current : 5A, 1A | ||||
| Internal Burden | Less than 1VA | ||||
| Input Power | AC100V～ 240V 50Hz/60Hz | ||||
| Operating Environment |
| ||||
| Size | W430 × H180 × D320mm | ||||
| Weight | Approx. 10.0kgs/Net | ||||
| Test Frequency | 50Hz/60Hz (manually selected) |
Measuring Range - Ratio Error and Phase Angle
| Measuring Range - Ratio Error 2% / Phase Angle 20min |
| ||||
| Measuring Range - Ratio Error 20% / Phase Angle 200 min |
|
VT Secondary Voltage
| VT 110V Rating | 2.0 ～ 220V |
| VT 110/√3V Rating | 1.2V ～ 127V |
CT Secondary Current
| CT 5A Rating | 0.1 ～ 10A |
| CT 1A Rating | 0.02 ～ 2A |
Resolution - Ratio Error and Phase Angle
| Range 2% |
| ||||
| Range 20% |
|
Accuracy - Ratio Error and Phase Angle
| More than 20% of rating | ±(3%Rdg+4 digits) |
| Less than 20% of rating | ±(3%Rdg+6 digits) |
Do you have a Instrument Transformer Test Set that needs to be calibrated?
We offer standard traceable calibration and ISO 17025 accredited calibration services.
Get your Instrument Transformer Test Set calibrated today! Click Here!
There are currently no reviews for this product.
