Soken DAC-MRG-2 - Contact Resistance Meter
Overview
Features
Specifications
Calibration
DAC-MRG-2 is designed to measure the low resistance of motors, transformers, power cables, and rotating machines and electrical parts. The compact design in an aluminum trunk body facilitates transport as well as operation at an on-site test.
Introducing the 4-wire measurement method, the meter provides a stable measurement of minimum resolution 0.1µΩ.
Applications
- Coil Resistance of Motors
- Transformers
- Conductor Resistance of Power Cables
- Electric Wires
- Contact Resistance of Switches
- Circuit Breakers
- Resistance of Fuses
- Welded parts

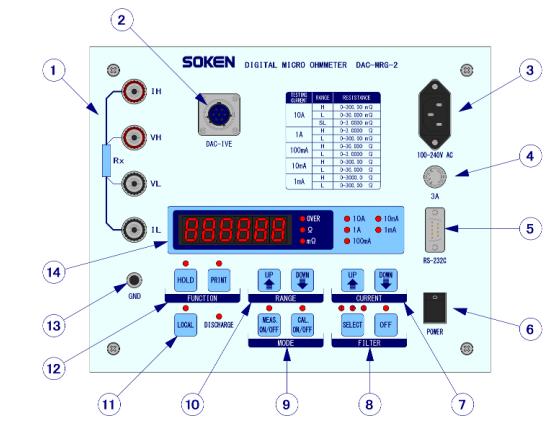

- Terminals for 4-terminal measuring cable
- Connector for DAC-IVE-1
- AC Inlet
- Fuse Holder
- RS-232C Connector
- Main Power Switch
- Keys for setting Testing Current
- Keys for selecting Filter
- MEAS • CAL ON/OFF Keys
- Keys for exchange Ranges
- Interface LOCAL Key
- HOLD display • PRINT Keys
- Grounding Terminal
- Display Screen for Measuring Result
- Measuring Current 10A ／ Minimum resolution 0.1μΩ
- Internal 3 steps filter circuit allows the stable field test.
- High accuracy measurement with the 4-terminal measuring method.
- To remove the test samples safely, a test discharging monitor circuit is provided so that the charging energy is discharged.
- Operation from the topside panel, suitable for On-Site test
Measuring
| Measuring Current: 10A |
| ||||||
| Measuring Current: 1A |
| ||||||
| Measuring Current: 100mA |
| ||||||
| Measuring Current: 10mA |
| ||||||
| Measuring Current: 1mA |
|
General
| Display | Digital Display 5 digits Max. 31999 |
| Accuracy | ±(0.2% Rdg+1digit) ※2000digits or more |
| AC Mains | AC85-132V/AC170-264V, 50/60Hz |
| Electric Power Consumption | Approx. 150W (on measuring 10A) |
| Dimensions | W305 × H245 × D250mm |
| Weight | Approx. 7.3kg (without projections) |
| Interface | RS-232C |
| Option | Thermal Printer Kit, Optional length cables |
