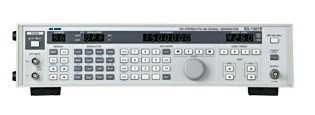

CREDIX SG-1501B - 150 MHz AM/FM Stereo RF Signal Generator
Overview
Features
Specifications
Calibration
Wide band coverage (100kHz~150MHz) and high accuracy (100Hz in full range).
Output level can be specified by 0.1dB step between -20dBμ to 126dBμ.
Presetting function for simple operation.
STEREO Function
Compact size and light weight.
Crystal oscillator stability : 5 × 10-6 (5ppm)
Options : GPIB, Remote Controller
Frequency
Range : 100kHz ~ 150MHz
Resolution :100Hz
Level
Range : -20dBμ to 126dBμ at open circuit (-133dBm~13dBm into 50Ω termination )
Resolution : 0.1dB
Modulation
FM range :0~100kHz
AM range :0~60%
 FREQUENCY |
||
| Range | 100kHz~150MHz (76MHz~110MHz, FM Stereo) |
|
| Resolution | 100Hz | |
| Accuracy | 5×10-6(5ppm) | |
| OUTPUT LEVEL |
||
| Range | -20dBμ ~126dBμ at open circuit (-133dBm ~ 13dBm into 50Ω termination) |
|
| Resolution | 0.1dB | |
| Accuracy | ±1dB at 100 dBμ | |
| Attenuator Accuracy | ±1.5dB(126~100 dBμ) , ±1dB(20~100 dBμ) ±2dB(-20~20 dBμ) |
|
| Output Impedance | 50Ω, VAWR less than 1.2 | |
| Spurious & Harmonics | ≤-30dBc | |
| Residual Modulation(S/N) | FM Component : 70dB or more AM Component : 50dB or more |
|
| MODULATION |
||
| Internal Modulation | Frequency : 400Hz, 1kHz | |
| External Modulation | Input Impedance: 10kΩ unbalanced±10% Input Voltage : 3Vp-p±2% |
|
| FM Range | 0~100kHz (at 1MHz~150MHz) Carrier Frequency×10% (at＜1MHz) |
|
| - Accuracy | ±10% of maximum frequency deviation | |
| - Pre-Emphasis | off, 25usec,50usec,75usec | |
| - Distortion | <0.06% (at 10.7MHz, 76~110MHz) <0.11% (at other range) ; with Dev=75kHz, AF1kHz, Demod.BW=50Hz~15kHz, DE-emp.=50㎲ec |
|
| AM Range | 0~60% | |
| - Resolution | 0.1% | |
| - Accuracy | ±5% at internal rate(1 | |
