Graphtec America MT100 - Paperless Recorder Mountcorder
Easy-to-view, easy-to-use paperless recorder
- Dust proof, drip proof, vibration proof for use at harsh environment
- Analog recorder chart paper image for easy-to-read waveform display
- Compact design 144(W) x 144(H) x 200(D) mm
Ten isolated channels and multifunction input to accommodate various measurement needs.
An isolated input system has been implemented to enable worry-free measurement. Ten input channels have been provided to meet multichannel needs.
Abundant selection of input types to meet diverse measurement needs

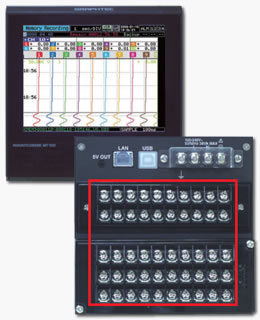

Rear panel terminal block
M4 screw terminals have been used for the input terminals to simplify wiring. The terminals can be tightened easily with a screwdriver. If an abnormal value arises, the alarm function informs the operator of the abnormality. Alarm output terminals for four channels are provided as standard.
Two types of humidity measurement are enabled.

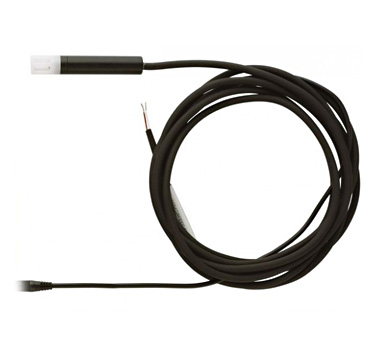

Using the dedicated humidity sensor (B-530)
Humidity measurement can be performed by connecting the dedicated humidity sensor to an analog terminal on the MT100 unit.
Operating temperature range:-25°C to +80°C- Operating humidity range:0% RH to 100% RH.
- Relative humidity measurement precision:±3% RH (5% RH to 98% RH at 25°C)
- External dimensions:Φ14 mm x 80 mm (excluding the cable)
- Cable length:3 m
Direct connection of dry-bulb and wet-bulb sensors
Large volumes of data can be directly captured to a USB memory stick over a long period of time.
A USB memory stick is used for the recording medium. A large volume of data measured over a long period of time on the ten available channels can be directly written to and stored on the memory stick. The MT100’s internal memory consists of 14-MB flash media.
Data capture time (when measurement is performed on ten channels)
| Capture interval (sampling speed) | 100ms | 1s | 10s | 1min |
|---|---|---|---|---|
| 14-Mbyte internal flash memory | Approx. 13 hours | Approx. 5 days | Approx. 53 days | Approx. 323 days |
| USB memory stick (256 Mbytes) | Approx. 9 days | Approx. 98 days | Approx. 987 days | Approx. 5,925 days |
USB memory stick replaceable even during measurement
The USB memory stick can be removed* even while long-term recording is being performed to enable checking of measurement that is still in progress. If the USB memory stick is removed, data capture is switched to the MT100’s internal buffer memory for a period of approximately 10 minutes. When the USB memory stick is reinserted in the MT100, data is once again captured to the memory stick.
*Key operation is required at the time of USB memory stick removal.
Dustproof, moisture-proof, vibration-resistant structure for severe measurement environments; space-saving design.
In order to withstand severe field environments, the structure has been designed to be dustproof, moisture-proof, and vibration-resistant. The front panel of the MT100 unit is an IP65-compliant structure that is both dustproof and moisture-proof. To prevent the penetration of dust, there are no slits in the MT100 unit itself. In addition, the unit’s vibration-resistant structure complies with the Vibration Testing Methods for Automobile Parts Standard, Type 1 Class A.
- The front panel’s dustproof and moisture-proof structure complies with IP65 protection standards.
- The vibration-resistant structure complies with the [Vibration Testing Methods for Automobile Parts Standard, Type 1 Class A].
Moreover, the space-saving design offers a reduced depth of only 200 mm to enable easy installation in various types of test systems.

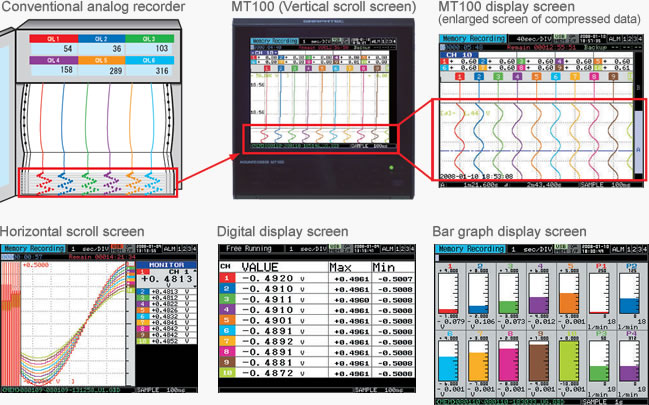

Easy-to-view waveform displays presented as if on chart paper used by analog recorders.
A large-format 5.7-inch color TFT liquid crystal display, bright and easy to read, is built-in. The measurement results are faithfully reproduced in the display formats used by conventional analog recorders. Waveform displays that are similar to those of pen recorders or dot-printing recorders enable the measurement progress to be easily ascertained at a glance. Four display formats are provided to enable the most easy-to-view format to be selected for each measurement application.
A compressed display of the time axis is provided at the bottom of the screen. As with a pen recorder or a dot-printing recorder, the waveform display enables the measurement progress to be easily ascertained at a glance. The compression ratio can be set in ten increments within the 1/10 to 1/100 TIME/DIV range.
Comprehensive network functions
A diverse range of network functions can be used to suit the measurement application.

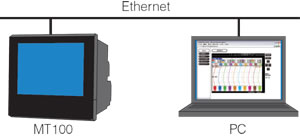

WEB server functionWaveform display and MT100 settings can be made via a web browser such as Internet Explorer. |

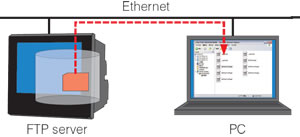

FTP server functionData stored in the MT100’s internal memory or the USB memory stick can be transferred or deleted through operations performed at the computer. |

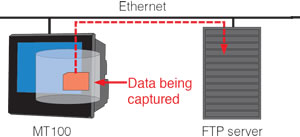

FTP client functionThe data captured to the MT100’s internal memory or the USB memory stick can be automatically backed up to the FTP server at fixed intervals. |

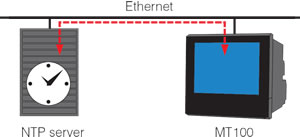

NTP client server functionThe MT100’s time can be synchronized to the NTP server’s time at periodic intervals. |
MT100 application software
The application software provided as a standard accessory with the MT100 enables easy online measurement and conversion of the data file format.
Main screen (Y-T)
Easy settings
Icon keys have been provided for intuitive waveform operations.
The number of setting screens has been reduced to only six. Settings in the amp setting screen and other screens can be performed while viewing the input signals.
Convenient functions
- Statistical calculation/Alarm history
- Password protection function
- Batch conversion of the captured data to CSV format
- Search function for specific points in the captured data
- Direct to Excel function
- Channel group function
- Comment input function

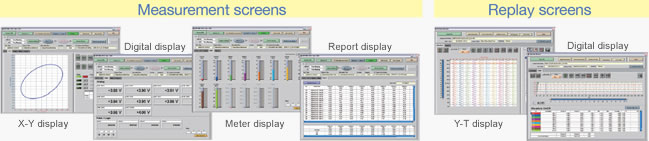

Various screen displays
Y-T, X-Y, Digital display, Meter display, and Report display screens have been provided to suit various measurement applications. In addition, the Replay display screen can be specified as Y-T, X-Y between cursors or Digital display.
- Abundant selection of input to meet diverse measurement needs
- Two types of humidity measurement are enabled
- USB memory stick replaceable even during measurement
- Dustproof, moisture-proof, vibration-resistant structure for sever measurement environments
- space-saving design
- Easy-to-view waveform displays presented as if on chart paper used by analog recorders
- Comprehensive networks function
- WEB server function
- FTP server function
- FTP client function
- NTP client server function
- Application Software
- Easy settings
- Convenient functions
- Various screen displays
Main Unit Specifications
| Item | Description | |||
|---|---|---|---|---|
| Number of analog input channels | 10 channels | |||
| External Input/Output | Trigger input, Logic input 4 ch or Pulse input 4 ch, Alarm output 4 ch | |||
| Sampling interval | 100 ms to 1 h (Max:100 ms/10ch) | |||
| TIME/DIV | 1 sec/DIV to 72 h/DIV | |||
| Trigger function | Type | Start | Data capture starts when a trigger is generated | |
| Stop | Data capture starts when a trigger is generated | |||
| Condition | Start | Off, Level, Alarm, Scheduled time, External, Day | ||
| Stop | Off, Level, Alarm, Scheduled time, Time, Day, External | |||
| Condition | Analog | H, L, Window In, Window Out, Rate of change | ||
| Logic | H, L | |||
| Pulse | H, L, Window In, Window Out, Rate of change | |||
| Alarm output | No. of channels | 4 | ||
| Output format | Relay contact output (NO/NC) | |||
| Output conditions | Level judgement, Window judgement, Logic pattern judgement, Pulse judgement | |||
| Output terminal | M4 screw terminal | |||
| Rating | 250 VAC/2A, 30 VDC/2A | |||
| Pulse input range | Count mode | 50, 500, 5000, 50 k, 500 k, 5 M, 50 M, 500 M C/F.S. (max. 50 k/sampling interval) | ||
| Inst. Mode | 50, 500, 5000, 50 k, 500 k, 5 M, 50 M, 500 M C/F.S. (max. 50 k/sampling interval) | |||
| RPM mode | 50, 500, 5000, 50 k, 500 k, 5 M, 50 M, 500 M RPM/F.S. (max. 50 k/sec) | |||
| Calculation function | Statistics calculation *1 | Average, Peak, maximum, Minimum, RMS (2 calculations can be set simultaneously) | ||
| Calculation between channels | Addition, Subtraction, Multiplication, Division (for analog input ch1 to ch10) | |||
| Wet-and dry-bulb temperature conversion | Humidity is calculated from the measured temperature of Wet-bulb and Dry-bulb (Dry bulb : fixed to ch1, Wet bulb : fixed to ch2, Range 0 to 100 %) |
|||
| Other function | Searching, Annotation input, Message, Marker function | |||
| Interface to PC | Ethernet (10BASE-T / 100BASE-TX), USB (Compatible with full speed) | |||
| Ethernet function | Web server function, FTP server function, FTP client function, NTP client function | |||
| USB function | USB drive mode (File transfer/delete of internal memory) | |||
| Internal storage device | Internal flash memory : 14 Mbyte, USB memory slot (compatible with full speed) *2 | |||
| Display | Size | 5.7 inch TFT color LCD | ||
| Displayed items | Waveforms + Digital values (vertical, horizontal), Digital + Calculation, Bar graph (vertical) | |||
| Clock accuracy (23°C environment) | ±0.002 % (within approx. 50 sec per month) | |||
| Operating environment | Temperature : 0 to 50 °C, Humidity : 5 to 85 % R.H. | |||
| Withstand voltage | Between each input channel and GND: 1 minute at 350 Vp-p | |||
| Between input terminals: 1 minute at 350 Vp-p | ||||
| Power supply | 100 to 240 V AC / 50 to 60 Hz, M4 screw terminal (Power cord is not attached) | |||
| Power consumption | 38 VA (when LCD is ON) | |||
| External dimensions (W x H x D)(approx.) | 144 mm x 144 mm x 200 mm | |||
| Weight (approx.) | 2.1 kg | |||
| Vibration resistance | Compatible with JIS Vibration testing methods for automobile Type 1 Class A-equivalent | |||
| Dust proof, Drip proof: IP65 compatible (for front panel only) | ||||
Analog input Specifications
| Item | Description | |||
|---|---|---|---|---|
| Type of input terminal | M4 screw type terminal | |||
| Measurement range | Voltage | 20, 50, 100, 200, 500 mV, 1, 2, 5, 10, 20, 50, V, 1-5 V F.S. | ||
| Temperature | Thermocouple : K, J, E, T, R, S, B, N, W (WRe5-26) | |||
| R.T.D. : Pt100, JPt100, Pt1000 (IEC751) | ||||
| Humidity | 0 to 100 % RH (Voltage 0 to 1 V conversion, when using optional B-530 humidity sensor is used) | |||
| Input filter | Off, 2, 5, 10, 20, 40 (Moving average) | |||
| Measurement accuracy *3 | Voltage | ±0.1 % of F.S. | ||
| Thermocouple | Measurement range | Accuracy | ||
| R/S | 0 TS 100 °C 100 < TS 300 °C R : 300 < TS 1600 °C S : 300 < TS 1760 °C |
± 5.2 °C ± 3.0 °C ± (0.05 % of rdg + 2.0 °C) ± (0.05 % of rdg + 2.0 °C) |
||
| B | 400 TS 600 °C 600 < TS 1820 °C |
± 3.5 °C ± (0.05 % of rdg + 2.0 °C) |
||
| K | -200 TS -100 °C -100 < TS 1370 °C |
|||
| E | -200 TS -100 °C -100 < TS 800 °C |
|||
| T | -200 TS -100 °C -100 < TS 400 °C |
|||
| J | -200 TS -100 °C -100 < TS 100 °C 100 < TS 1100 °C |
|||
| N | 0 TS 1300 °C | |||
| W | 0 TS 2000 °C | |||
| R.T.D. | Pt100 | -200 to 850 °C (FS = 1050 °C) | ||
| JPt100 | -200 to 500 °C (FS = 700 °C) | |||
| Pt1000 | -200 to 500 °C (FS = 700 °C) | |||
| * If the reference junction compensation is internal, add ± 0.5 °C to each of the above values. | ||||
| A/D converter | 16 bit (out of which 14 are internally acknowledged) | |||
| Maximum input voltage | 60 Vp-p (Between ± terminals) | |||
| 60 Vp-p (Between input terminals) | ||||
| 60 Vp-p (Between input terminal and GND) | ||||
| Withstand voltage | Between each input channel and GND: 1 minute at 350 Vp-p | |||
| Between input terminals: 1 minute at 350 Vp-p | ||||
Remarks
*1 for realtime and between cursors (when data reviewing)
*2 1 file 2 GB (it depends on used USB memory)
*3 Thermocouple: 0.32φ for T type, 0.65φ for other types
PC software specifications
| Item | Description |
|---|---|
| Compatible OS | Windows 2000/XP/Vista (32 bit and 64 bit version) |
| Function | Control of main unit, Realtime data capture, File conversion |
| Max. number of controlable units | 10 units |
| Max. number of controlable channels | 100 channels |
| Settable items | AMP settings, Capture settings, Trigger/Alarm settings, Report settings, Other |
| Captured data | Realtime data, Internal memory data, USB memory data (CSV and Binary data) |
| Display | Analog waveforms, Logic waveforms, Pulse waveforms, Digital values |
| File conversion | Data conversion between cursors/All data |
| Monitor functions | Alarm monitor enables sending of email to the specified address |
| Dual display function | Current/previous data display |
| Statistics calculation, report | Maximum, minimum, average data during measurement |
| Report function | Automatic creation of daily or monthly files |
