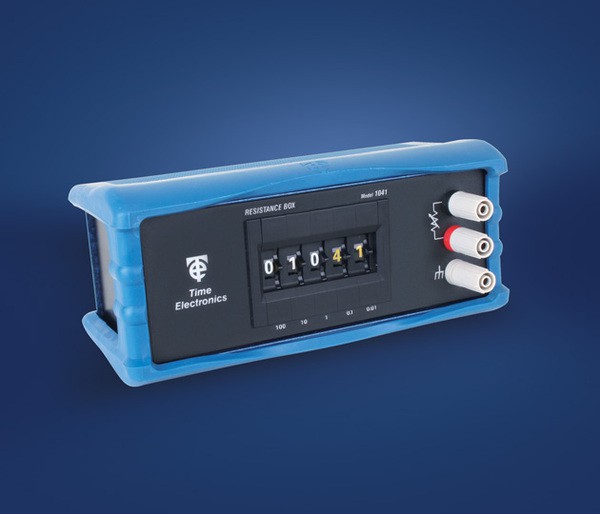

Time Electronics 1041 - 5 Decade Resistance Box
A precision low ohm resistance box designed for general laboratory work including platinum resistance thermometry.
The 1041 is compact and durable, housed in a robust metal case with removable protective rubber cover, making it ideal for use in either the laboratory or field. Excellent accuracy is achieved by using high stability metal film resistors. The 5-digit thumbwheel switch enables simple and precise setting with a clear indication of the resistance value.
Switch Contacts
Special attention has been given to the reliability of operation. A special multiple gold contact arrangement ensures low contact resistance and continued operation even if a contact fails.
Clear Visual Indication
To make selecting and reading the setting easy the 1041 incorporates colour coded digits: ohms - white, milliohms - yellow.
Safety Terminals
Compatible with 4mm shrouded plugs, as well as standard plugs, bare wires, and spade terminals.
Added Protection
The 1041 comes fitted with an ergonomic rubber cover providing increased protection and durability. It has a textured grip for comfortable handling and side openings to place labels. It is easy to remove if the user prefers a stand-alone unit or to house the 1041 in the optional 9026 carry case.
This low ohm resistance box is part of the Time Electronics well-proven decade box line. It can be used as a calibration standard for site and workshop use and is ideal for PT100 and other resistance input instrumentation.
- 0.01Ω to 1kΩ
- 10mΩ resolution
- Ideal for PRT/RTD
- High stability
- Safety terminals
- Low temperature coefficient
- Supplied with protective cover
Technical Specifications
|
Range |
0 to 1kΩ |
| Resolution | 0.01Ω steps |
| Decade | 0.01Ω | 0.1Ω | 1Ω | 10Ω | 100Ω |
|---|---|---|---|---|---|
| Accuracy | ± 10% | ± 5% | ± 1% | ± 0.5% | ± 0.1% |
| Max Current | 1A | 1A | 1A | 0.3A | 0.1A |
| Residual Resistance | Less than 60mΩ |
| Power Rating | 1 watt per resistor |
| Voltage Rating | Maximum 100V DC/AC RMS |
| Temperature Coefficient | 50ppm/°C |
| Dimensions | W215 x H100 x D120mm including protective cover (W200 x H75 x D110mm without) |
| Weight | 1kg including protective cover (0.6kg without) |
| Supplied With | Protective cover (fitted) and user manual |
| Optional Extras | Leather carry case. Calibration certificates traceable NPL and UKAS |
| Country of Origin | UK |
