Time Electronics 5051 - Plus Multifunction Calibration System
Calibrator / DMM / Touch Screen PC

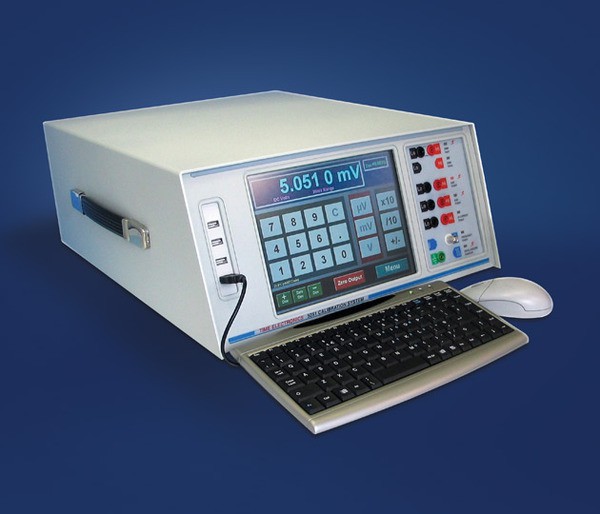

The 5051Plus combines a precision multifunction calibrator, 6½ digit multimeter, and industrial touch screen PC. Offering high performance calibration and maximum functionality, it provides the foundation for an efficient calibration program. By integrating the calibrator, DMM and PC in one unit minimal bench space is used in the laboratory. This is also beneficial for field calibration work as the 5051Plus replaces the need for transporting several instruments.
Calibrator
The standard unit is fitted with AC/DC voltage to 1050V, AC/DC current to 22A, variable resistance to 120MΩ (with 1GΩ fixed value), capacitance and inductance, conductance, thermocouple simulation and oscilloscope calibration. Also supplied is a clamp meter adaptor for clamp calibration up to 1100A, and test lead set to provide the neccessary connections for nearly all applications. Further enhancements can be made by optional adaptors and accompanying benchtop instruments. Both manual control and EasyCal software control is available.
Digital Multimeter
The internal 6½ digit multimeter measures DC voltages to 1000V, AC voltages to 750V, resistance to 100MΩ, and frequency to 300kHz.
Operation can be performed using the manual control program or EasyCal software.
Touch Screen PC
The operating system is Windows XP embedded, running on a 2GHz PC which allows standard peripherals to be connected. The calibrator and DMM control programs allows the wide range of functions to be easily selected using mouse, keyboard, or touch screen. As a complete workstation the 5051Plus is supplied with printer and connectivity kit for producing certificates, reports, and labels.
Multi Instrument Calibration
The 5051Plus can calibrate digital and analogue multimeters, frequency meters, ohm meters, AC/DC millivoltmeters, decade boxes, thermocouple indicators and sensors, clamp meters, oscilloscopes, timer counters, RTDs and much more. Accompanying instruments and adaptors can be added for power supplies, pressure devices, and more.
EasyCal Software - Manage, Automate and Optimise the Calibration Process
The 5051Plus comes pre-loaded with Time Electronics’ EasyCal software. Automate the calibration process and increase speed of calibration and consistency of results. Easily produce calibration certificates and reports to ISO 9001, ISO 17025, and other international quality standards. Data can be transferred to desktop PCs/servers using USB memory or connected to a LAN via the ethernet connection located on the rear of the unit.
- Combined calibrator/DMM/PC
- 0 - 1050V & 0 - 22A (AC/DC)
- Source up to 1GΩ resistance
- Thermocouple simulate/measure
- PT100, C & L, scope calibration
- Clamp meter calibration
- EasyCal Software included
Technical Specifications
Standard Features - Calibrator
| Function | Range | Best 1 year Specification |
|---|---|---|
| Voltage DC | 0 to ± 1050V | ± 15ppm of setting |
| Current DC | 0 to ± 22A | ± 80ppm of setting |
| Voltage AC | 1mV to 1050V (10Hz to 20kHz, sine-wave) | ± 300ppm of setting |
| Wideband AC Voltage | 20 to 200mV/300kHz. 0.2 to 2V/1MHz. 2 to 20V/100kHz | ± 0.05% of setting |
| Current AC | 10μA to 22A (20Hz to 1kHz, sine-wave) | ± 0.05% of setting |
| Clamp Meter Adaptor x50 turn | AC/DC Current up to 1100A (DC, 45 to 90Hz) | ± 0.5% |
| Capacitance | 1nF, 10nF, 100nF, 1μF, 10μF, 100μF (100V max) | ± 0.25% of setting |
| Inductance | 1mH, 1.9mH, 5mH, 10mH, 19mH, 50mH, 100mH, 190mH, 500mH, 1H, 10H | ± 0.1% of setting |
|
Resistance |
1Ω to 120MΩ variable (plus 1GΩ fixed value) |
± 100ppm of setting |
| Conductance | 1s to 1ns (Fixed values, decade steps) | ± 20ppm of setting |
| Thermocouple Simulation | -270 to 1800°C (Type J, K, R, T, S, B, E, N) | ± 0.15°C |
|
PT100 Simulation |
-180 to 850°C |
± 0.2°C |
|
Oscilloscope Calibration |
||
|
- Amplitude |
0mV to 200V and 0mV to 2V 50Ω (square-wave or DC) |
± 0.05% |
|
- Frequency/Period |
0.1Hz to 100MHz / 100ns to 10s |
± 20ppm (± 0.1ppm - opt 9783) |
|
- Duty Cycle |
3 frequencies: 100Hz, 1kHz, 10kHz, settable from 0 to 100% |
– |
|
- Fast-Rise |
<850ps. Bandwidth checking up to 400MHz |
– |
|
- 2.2GHz Sweep (opt 9769) |
100MHz to 2.2GHz levelled sine-wave (0.5, 1, 1.5V pk-pk) |
Amplitude ± 1%, Freq ± 20ppm |
Standard Features - Internal DMM 6.5 Digit
| Function | Range | Best 1 year Specification |
|---|---|---|
| Voltage DC | 0 to 1000V | 35ppm of rdg + 6ppm of rng |
| Current DC | 0 to 3A | 500ppm of rdg + 50ppm of rng |
| Voltage AC | 0 to 750V | 0.06% of rdg + 0.04% of rng |
| Current AC | 0 to 3A | 0.1% of rdg + 0.04% of rng |
| Resistance | 0 to 100MΩ | 100ppm of rdg + 50ppm of rng |
| Frequency | 3Hz to 300kHz | 0.01% of rdg |
| Thermocouple | -270 to 1800°C (Type J, K, R, T, S, B, E, N) | ± 0.5°C |
| PT100 | -180 to 850°C | ± 0.08°C |
Standard Features - Internal PC Specifications / Details
| Processor | 2GHz |
| RAM | 512MB |
| Hard Drive | 60GB Solid State |
| Ports | 4 x USB, 1 x Fast Ethernet |
| Display | 10.5in LCD (Touch Screen) |
| Operating System | Windows XP Embedded |
|
Pre-loaded Software |
Calibrator and DMM control programs, EasyCal calibration software suite |
|
Supplied With |
USB keyboard, Inkjet Printer, Cal and ID Label Printer, DVD-RW, 4 port USB hub, Numeric key pad, USB memory stick |
Options
|
Oscilloscope Calibration Options |
9769: Internal Scope 2.2GHz Levelled Sine Generator 9783: Internal Oven-Controlled High Stability Frequency Reference 9762: External Rubidium High Stability Frequency Reference 9764: External Current Probe Calibration Adaptor |
|
External Adaptors & Instruments |
9773: Optical Tacho Adaptor 9764: Current Probe Calibration Adaptor 9790: 100 Amp AC Current Transformer 9760: Power Amplifier (60V AC, 90V DC - 100mA) 7042: Remote Pressure Module (Vac to 20 bar versions) 5077: Power Calibrator 7070/7071/7072: Dry Block Calibrators |
|
EasyCal Accessories & Calibration Certificates |
9777: Bar Code Reader 9779: Job and Address Label Printer EC2FL/EC2CL/EC2WL: Additional User Licenses for separate PCs EAD: EasyAdmin Add-On EWC: WebCerts Add-On CREP: Crystal Reports Software C134: UKAS Calibration Certificate |
General Specifications
| Warm up | 30 minutes to full accuracy |
| Settling Time | Less than 5 seconds |
| Temp Performance | Operating: 5 to 40°C, Full Spec: 22°C +/- 3°C, Storage: -10°C to 50°C |
| Operating Humidity | <80% non condensing |
| Operating Altitude | 0 to 3km. Non operating: 3km to 12km |
| Line Power | 100 to 230V AC 50/60 Hz. 200W maximum |
| Dimensions | W430 x H202 x D538mm |
| Weight | 23kg |
|
Supplied Items |
5051PLUS Calibration System Clamp Meter Adaptor Premium Test lead Set Soft Carry Case USB keyboard, Inkjet Printer, DVD-RW, 4 port USB hub, Numeric key pad, USB memory stick Cal and ID Label Printer 5051 Manual Control Software (Calibrator and DMM) EasyCal Calibration Software Factory Calibration Certificate (NPL traceable) |
| Country of Origin | UK |
