Fluke 51-2 - Single Input Digital Thermometer

Single Input Digital Thermometer

Fluke

Rated 0 / 5 (0 reviews)

Category : Temperature Instrumentation

by quote only add to cart

Documents:

Overview
Features
Specifications
Calibration

Laboratory accuracy. Wherever you go

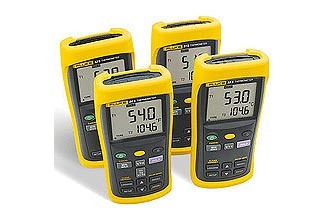

The Fluke 50 Series II contact thermometers offer fast response and laboratory accuracy (0.05% + 0.3°C) in a rugged, handheld test tool. Take contact temperature for checking motors, insulation, breakers, pipes, corroded connections, liquids, and wires with industrial standard J, K, T, E, N, R, and S type thermocouple (temperature sensors).



 Product Highlights

Fluke 50 Series II products features:

  • Relative time clock on MIN, MAX, and AVG provides a time reference for major events
  • Electronic Offset function allows compensation of thermocouple errors to maximize overall accuracy
  • Measures J, K, T, and E-types of thermocouples
  • Readout in ºC, ºF, or Kelvin (K)
  • Splash and dust resistant case protected by impact absorbing holster
  • User-friendly front panel is easy to set up and operate
  • Sleep mode increases battery life; typical 1000-hour battery life
  • Battery door allows easy battery replacement without breaking the calibration seal
  • Optional ToolPak accessory allows the thermometer to hang from any metal object (with the rare earth magnet) or secure around a pipe (with hook-and-loop straps) for hands-free operation.
  • 3 year warranty
Specifications
Temperature accuracy Above -100 °C: J, K, T, E, and N-type: ±[0.05% + 0.3°C]*
  R and S-type: ±[0.05% + 0.4°C]*
Below -100 °C: J, K, E, and N-types: ±[0.20% + 0.3°C]*
  T-type: ±[0.50% + 0.3°C]
Temperature J-type: -210 °C to 1200 °C
K-type: -200 °C to 1372 °C
T-type: -250 °C to 400 °C
E-type: -150 °C to 1000 °C
N-type: -200 °C to 1300 °C *
R and S-type: 0 °C to 1767 °C *
Temperature scale ITS-90
Applicable standards NIST-175
Display resolution 0.1 °C, 0.1 K < 1000
1°C, 1 K >=1000
Note *Only the Fluke Models 53 II B and 54 II Bthermometers are capable of measuring N, R, and S-type thermocouples.
Environmental Specifications
Operating temperature -10 °C to 50 °C
Storage temperature -40 °C to 60 °C
Humidity (without condensation) 0% to 90%; 0 °C to 35 °C
0% to 70%; 0 °C to 50 °C
Safety Specifications
Overvoltage category CSA C22.2 No. 1010.1 1992; EN 61010 Amendments 1,2
Agency approvals CE, CSA, TÜV (pending)
Mechanical & General Specifications
Size 173 mm L x 86 mm W x 38 mm
Weight 400 g
Batteries 3 AA batteries; typical 1000-hour life

Do you have a Single Input Digital Thermometer that needs to be calibrated?

We offer standard traceable calibration and ISO 17025 accredited calibration services.

Get your Single Input Digital Thermometer calibrated today! Click Here!
