Fluke 87V/IMSK - Industrial Multimeter Service Combo Kit
Overview
Features
Specifications
Calibration
This combo kit is built around the Fluke 87V, the most widely used industrial digital multimeter in the world, and includes special accessories to make you even more productive on the job. This kit will save over 15% compared with the individual price of all the accessories. Plus you'll be working with the most trusted tools in the world.

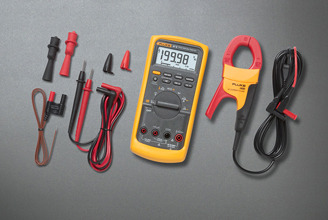

Fluke-87V/IMSK Industrial Multimeter Service Kit Includes:
- Fluke-87V Multimeter with temperature frequency, capacitance 250 µs peak min-max
- Fluke-i400 AC 400A Current Clamp
- 80BK-A thermocouple bead probe
- TL75 test leads
- AC72 alligator clips
- Limited lifetime warranty on Fluke-87V and 1-year warranty on accessories
Fluke 87V Digital Multimeter
| Specifications | ||
| Voltage DC | Maximum Voltage | 1000V |
| Accuracy | ±(0.05%+1) | |
| Maximum Resolution | 10 µV | |
| Voltage AC | Maximum Voltage | 1000V |
| Accuracy | ±(0.7%+2) True RMS | |
| AC Bandwidth | 20kHz with low pass filter; 3db @ 1kHz | |
| Maximum Resolution | 0.1 mV | |
| Current DC | Maximum Amps | 10A (20 A for 30 seconds maximum) |
| Amps Accuracy | ±(0.2%+2) | |
| Maximum Resolution | 0.01 µA | |
| Current AC | Maximum Amps | 10A (20 A for 30 seconds maximum) |
| Amps Accuracy | ±(1.0%+2) True RMS | |
| Maximum Resolution | 0.1 µA | |
| Resistance | Maximum Resistance | 50 MΩ |
| Accuracy | ±(0.2%+1) | |
| Maximum Resolution | 0.1Ω | |
| Capacitance | Maximum Capacitance | 9,999 µF |
| Accuracy | ±(1%+2) | |
| Maximum Resolution | 0.01 nF | |
| Frequency | Maximum Frequency | 200 kHz |
| Accuracy | ±(0.005%+1) | |
| Maximum Resolution | 0.01 Hz | |
| Duty Cycle | Maximum Duty Cycle | 99.9% |
| Accuracy | ±(0.2% per khz +0.1%) | |
| Maximum Resolution | 0.1% | |
| Temperature Measurement | -200.0°C - 1090°C -328.0°F - 1994.0°F excluding probe |
|
| 80 BK Temperature Probe | -40.0°C - 260°C -40.0°F - 500°F, 2.2°C or 2% whichever is greater |
|
| Conductance | Maximum Conductance | 60.00 nS |
| Accuracy | ±(1.0%+10) | |
| Maximum Resolution | 0.01 nS | |
| Diode | Range | 3 V |
| Resolution | 1 mV | |
| Accuracy | ± (2 % + 1) | |
| Duty Cycle Range | Accuracy | Within ± (0.2% per kHz + 0.1 %) |
| Environmental Specifications | |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +60°C |
| Humidity (Without Condensation) | 0% - 90% (0°C - 35°C) 0% - 70% (35°C - 55°C) |
| Operating Altitude | 2000 m |
| Safety Specifications | |
| Overvoltage category | EN 61010-1 to 1000 V CAT III, 600V CAT IV |
| Agency Approvals | UL, CSA, TÜV, VDE listed |
| Mechanical and General Specifications | ||
| Size | 201 x 98 x 52 mm (with holster) | |
| Weight | 355 g 624 g - with holster |
|
| Display | Digital | 6000 counts updates 4/sec. 19,999 counts in high-resolution mode |
| Analog | 32 segments, updates 40/sec. | |
| Frequency | 19,999 counts, updates 3/sec at > 10 Hz | |
| Warranty | Lifetime | |
| Battery Life | Alkaline | ~400 hours typical, without backlight |
| Shock | 1 Meter drop per IEC 61010-1:2001 | |
| Vibration | Per MIL-PRF-28800 for a Class 2 instrument | |
Fluke i400 AC Current Clamp
| Specifications | |
| Nominal current range | 400A |
| Continuous current range | 1 A - 400 A |
| Maximum non-destructive current | 1000 A |
| Lowest measurable current | 1 A |
| Basic accuracy | 2% + 0.06 A |
| (45-400 Hz) | |
| (% reading + floorspec) | |
| Useable frequency | 5 Hz - 20 kHz |
| Output level(s) | 1 mA/A |
| Safety Specifications | |
| Safety | CAT IV 600 V, CAT III, 1000 V |
| Maximum voltage | 1000 V AC rms from earth to ground, in compliance with EN61010 |
| Mechanical and General Specifications | |
| Warranty | 1 year |
| Maximum conductor diameter | 32 mm (1.25 inches) |
| Maximum conductor size (busbar) | 750 MCM |
| Output cable length | 1.5 m (59 inches) |
| Shrouded banana plugs | Yes |
Do you have a Industrial Multimeter Service Combo Kit that needs to be calibrated?
We offer standard traceable calibration and ISO 17025 accredited calibration services.
Get your Industrial Multimeter Service Combo Kit calibrated today! Click Here!
