AMPROBE AT-7000-R - Advanced Wire Tracer Receiver
Get accurate results in minutes with new features and technologies that simplify wire tracing and breaker identification. The Receiver’s patented Smart Sensor,™ with its innovative new antenna design and advanced signal processor, clearly displays the location and orientation of energized wires in walls, floors and ceilings on the large color TFT LCD screen. The powerful Transmitter utilizes two optimal frequencies for both energized and de-energized wire and breaker tracing, delivering consistently accurate results for novice users and experts alike. The new Scan and Locate feature clearly identifies the one correct breaker or fuse, eliminating the confusion from multiple false positive readings common in older technology tracing tools.

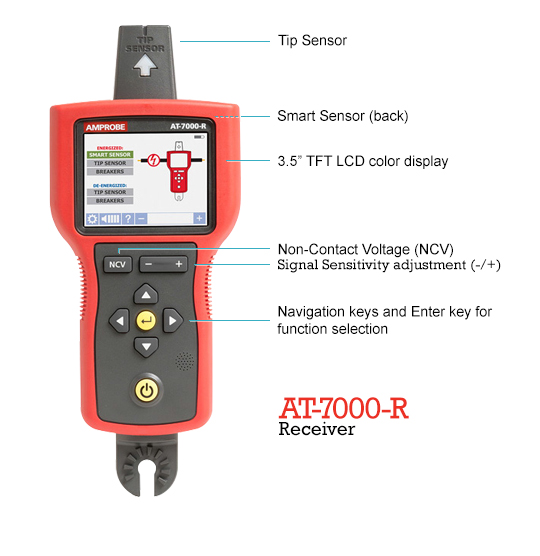

Tip SensorThe shape of the tip sensor allows tracing in hard to reach areas, corners & tight spaces, as well as precise circuit breaker and fuse identification. By utilizing two different types of antennas (inductive coil and capacitive), the tip sensor enables optimal tracing results of both energized and de-energized circuits, which are automatically selected by operating mode. |
Smart SensorQuickly and easily determine the precise direction and location of energized wires in walls, floors and ceilings with the patented Smart Sensor™. Combined with a fast signal processor that measures small changes in the detected signal multiple times per second, this new technology provides unmatched precision and ease of use for tracing energized wires. |
- Traces wires in walls, ceilings, floors and corners
- Locates breakers and fuses
- Pinpoints shorts and opens
- High resolution 3.5” TFT LCD color display
- Three power modes
- “High” power mode for normal circuits
- “Low” power mode for precision tracing in difficult areas
- “Clamp” power mode provides a boosted signal using signal clamp
- Two automatically selected frequency modes for optimal tracing on energized and de-energized circuits
- Signal booster rechargeable battery pack (BR-7000-T) increases transmitter signal strength
- Clamp-on attachment (SC-7000) for inducing signal into wires without access to bare conductors
- Embedded help screens make set-up easy and error free
| TFT LCD Color Display Size | 3.5 in(8.89 cm) |
| TFT LCD Color Display Dimensions | 2.76 x 2.07 in (7.01 x 5.26 cm) |
| TFT LCD Color Display Resolution | 320px x 240px |
| TFT LCD Color Display Type | TFT LCD |
| TFT LCD Display | • |
| Backlight | • |
| mDDR | 64 MB |
| FLASH memory | 128 MB |
| Audio | 95 dB |
| Operating Temperature range | 0 to 120°F (-17.77°C to 49°C) |
| Storage Temperature | -40 to 150°F (-40 to 65.5°C) |
| Operating Humidity | 95% R.H. max |
| Operating Altitude | 2000 m |
| Measurement Category | CAT IV 600V |
| Pollution Degree | 2 |
| Drop Test | 3.28ft (1m) |
| Power Supply | 4xAA Alkaline battery |
| Power consumption | 4xAA battery: 2W |
| Charging Voltage (BR-7000-T) | - |
| Charging Duration (BR-7000-T) | - |
| Power Up Time | 30 s |
| Non-Rechargeable Battery lifetime | 9 h |
| Rechargeable Battery lifetime (BR-7000-T) | - |
| Leakage current (non-rechargeable) | 1.1 to 2.6 µA |
| Leakage current (rechargeable) | - |
| IP Rating | IP52 |
| Sampling Rate | 6.25 kHz Signal: 62.5 kSPS 32.768 kHz: 256 kSPS NCV: 62.5 kSPS |
| Signal Response | Audible beep, bargraph display, numeric display |
| Response Time | Smart mode: 750 ms Tip Sensor Energized: 300 ms Tip Sensor De-Energized: 750 ms NCV: 500 ms Battery Monitoring: 5 s |
| Voltage Measurement | - |
| Non-Contact Voltage(NCV) | 90-600 V AC |
| LED Indicator | Green Flashing: Signal Detection |
| Operating Frequency | Energized: 6.25 kHz De-Energized: 32.768 kHz |
| Acoustic Indication | 1 kHz Piezo Buzzer |
| Range Detection (Open air) | - |
| Smart mode | Pinpointing: Around 1.97 in (5 cm) radius Direction Indication: Up to 5 ft (152.4 cm) |
| TIP Sensor: Energized | Pinpointing: Around 1.97 in (5 cm) Detection: Up to 22ft (670.56 cm) |
| TIP Sensor: De-Energized | Pinpointing: Around 1.97 in (5 cm) radius Detection: Up to 14ft (426.72 cm) |
| NCV | Detection: Up to 4 ft (121.92 cm) |
| Current Output (Low) Energized | - |
| Current Output (High) Energized | - |
| Current Output (Low) with BR-7000-T Energized | - |
| Current Output (High) with BR-7000-T Energized | - |
| Voltage Output (Low) De-Energized | - |
| Voltage Output (High) De-Energized | - |
| Voltage Output (Clamp) De-Energized | - |
| Jaw Opening |
- |
| Fuse | - |
| Dimensions | 10.92 x 4.43 x 2.55 in (27.75 x 11.25 x 6.483 cm) |
| Weight | 1.20 lb (0.544 kg) |
