Fluke TI90-9HZ - Ti90 Infrared Camera
Overview
Features
Specifications
Calibration
BETTER detail, BIGGEST display, BEST VALUE in their class1

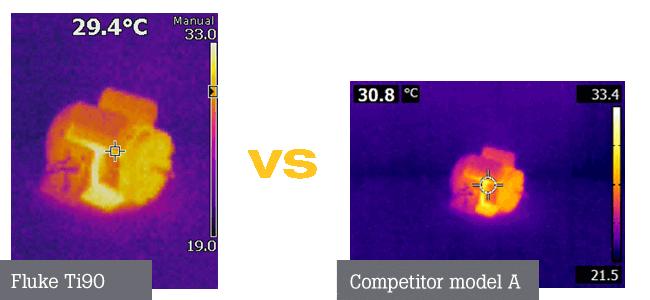

Images were captured under the same conditions and from the same distance of 1.2 m (4 ft) by a professional thermographer and exported in a JPEG format. Except for the captions in the lower, left-hand corner of each image, images are displayed as saved by each infrared camera.
Features rich affordability at your fingertips with DIFFERENCES YOU CAN SEE.
- See more detail with 84% better spatial resolution1 – increases the detail in your inspection target
- Easier to see potential problems with a 32% larger display1
 |
Prevent unexpected loss of power with pop in/pop out replaceable smart batteries with handy LED charge level indicator. |
 |
Easy image transfer and more flexibility with replaceable 12 GB of memory capacity (8 GB Fluke Connect™ wireless card and 4 GB memory card). |
 |
Fluke Connect™ compatible - save and share measurements faster and easier from the field2. |
1Compared to industrial handheld infrared cameras with list prices up to $2,000.00 (USD) as of September 17, 2014.
2Within provider's wireless service area.
- The only wireless industrial infrared camera in its price class1 – take advantage of the benefits of Fluke Connect™ by seamlessly gathering and sharing inspection results instantly
- Superior image quality, up to 84% better spatial resolution than other competitive models in this price class1
- 80 x 60 resolution
- Removable 4 GB SD memory card
- 8 GB Fluke Connect™ wireless SD Card
- Get context for the infrared image by switching to the full visible (IR-Fusion® AutoBlend™ mode and Picture-in-Picture available in SmartView® software)
- 2 megapixel built-in digital camera
- 3.5 in LCD
- Smart Battery System - Lithium ion smart battery pack with five-segment LED display to show charge level
- Rugged, lightweight, point–and–shoot infrared camera
1 Class is defined as an industrial handheld infrared camera in the same price range based on MSRP as of May 1, 2014.
| Key Features | |
| IFOV (spatial resolution) | 5.6 mRad |
| Detector resolution | 80x60 (4,800 pixels) |
| Field of view | 19.5 °H x 26 °V |
| Minimum focus distance | 46 cm (18 in) |
| Focus system | Focus free (fixed focus) |
| Wireless connectivity | Fluke Connect™ app compatible with included wireless SD Card1 |
| IR-Fusion® technology | Only full visible on camera (IR-Fusion® AutoBlend™ mode available in SmartView® software) |
| Display | 3.5 inch diagonal (portrait format) |
| Design | Rugged, lightweight, ergonomic design for one-handed use |
| Thermal sensitivity (NETD) | ≤ 0.15 °C at 30 °C target temp (150 mK) |
| Temperature measurement range | -20 °C to +250 °C (-4 °F to +482 °F) |
| Built-in digital camera (visible light) | 2 megapixel industrial performance |
| Frame rate | 9 Hz |
| Data Storage and Image Capture | |
| Extensive memory options | Removable 4 Gb SD memory card and 8 Gb wireless SD card (where available); direct download via USB-to-PC connection |
| File formats image | Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2) No analysis software required for non-radiometric (.bmp, .jpg) files |
| SmartView® software | SmartView® software, Fluke Connect™1, and SmartView® Mobile App—full analysis and reporting software |
| Battery | |
| Batteries (field-replaceable, rechargeable) | One lithium ion smart battery pack with five-segment LED display to show charge level |
| AC battery charging system | In-imager charging. Optional two-bay battery charger or optional 12 V automotive charging adapter |
| Temperature Measurement | |
| Accuracy | ± 2 °C or 2 % (at 25 °C nominal, whichever is greater) |
| On-screen emissivity correction | Yes (both value and table) |
| On-screen reflected background temperature compensation | Yes |
| General Specifications | |
| Color palettes | 3 standard: Ironbow, Blue-Red, Grayscale |
| Drop | Engineered to withstand 2 meter (6.5 feet) drop |
| Size (H x W x L) | 28.4 cm x 8.6 cm x 13.5 cm (11.2 in x 3.4 in x 5.3 in) |
| Weight (battery included) | 0.73 kg (1.6 lb) |
| Enclosure rating | IP54 (protected against dust, limited ingress; protection against water spray from all directions) |
| Warranty | Two-years (standard), extended warranties are available |
| Notes | |
| 1Fluke Connect™ not available in all countries | |
Do you have a Ti90 Infrared Camera that needs to be calibrated?
We offer standard traceable calibration and ISO 17025 accredited calibration services.
Get your Ti90 Infrared Camera calibrated today! Click Here!
