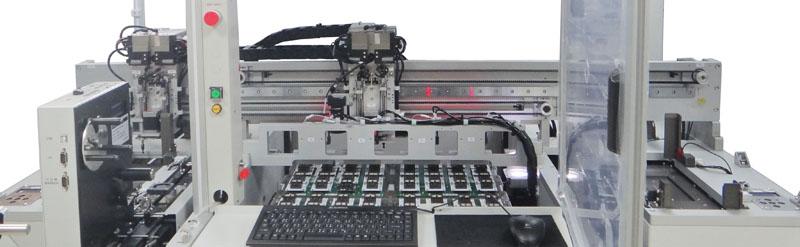

Leaptronix AH-640 - Automatic Programming Equipment
Overview
Features
Specifications
Calibration
To keep ahead the trend for high-density IC, AH-640 enhances on the programming sides and the programming speed. These two improvements make the programming efficiency perfectly. Besides, AH-640 build in the AOI system to make sure the the the precision positioning.
- Up to support 64 sites
Provide 2 parts of programmer module areas, able to change different programmer modules. For example, one side is for 32 sites eMMC modules, the other side for 12 sites universal modules. The dedicated programmers make the high yield rate and high C/P value.
- Multi-Z axises for enhancing throughput

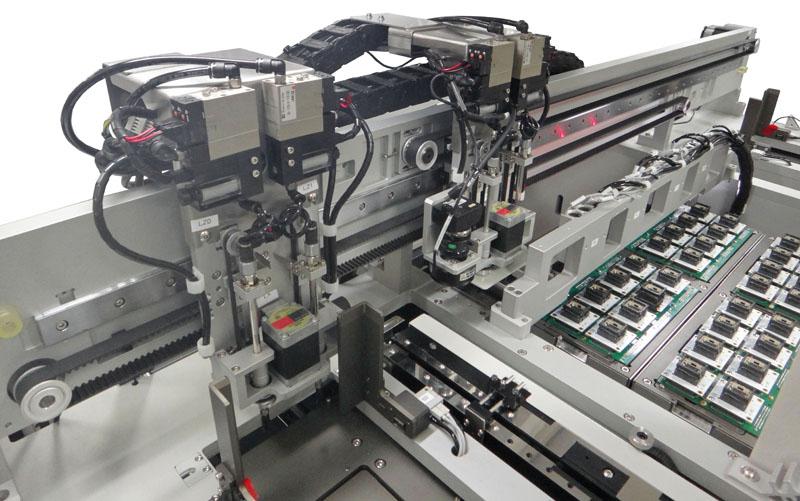

The AH-640 is based on XY Table for foundation. There are corresponding Z axis groups for in and out. The each group build in 2 sets of Z axises. There are 2 Θ axises on the each Z axis. They correct the offset ICs and pull up the capacity.
- CCD positioning module
The AH-640 imports CCD AOI system modules. With the XY Table motion control, they make sure the accurate positioning for each IC.
- Modular electric control system
Uses the industrial Chassis standard to establish the electric control system, including AC power, DC power, signal, all types of control cards and computers. It simplify the wiring and easy to check and maintenance.
- Intelligent Automation control
To adapt to the trend for Intelligent Automation, AH-640 control software has all the automatic programming functions, and convenient to link to all types of programmers, testers, electric control system and exchange information with external computers.
- Marking task
Provides optional automatic.
Handler system
| U.P.H. | 1500 (no programming time) |
| Placement repeatability | ±0.03mm |
| Pick and place method | 4 vacuum nozzles |
General Specifications
| Dimensions | 1655mm(W)*1520mm(H)*1060mm(D) [Without tower light] 1655mm(W)*2030mm(H)*1060mm(D) [With tower light] |
| Net weight | 600kg |
Motion System
| X axis stroke | 1000mm |
| Y axis stroke | 410mm |
| Z axis stroke | 70mm |
| Θaxis stroke | 360° |
AOI System
| Fixed CCD | Field of view: 25x20mm Resolution: 0.02 mm Repeatability: ±0.008 mm |
| Carried CCD | Field of view: 35x25mm Resolution: 0.045mm Repeatability: ±0.03 mm |
Programmer
| Resident programmer | eMMC Gang Programmer |
| Programming Site | 1 to 8 site, 1 to 8 socket per site, up to 64 socket. |
Loader and unloader
| Tray input | Auto tray move in，stack up to 10 trays for JEDEC stander. |
| Tray output | Auto tray move out，stack up to 10 trays for JEDEC stander. |
| Tape input | Available for tape with 8mm, 12mm, 16mm, 24mm tape width. |
| Tape output | Press-sealing mode，Accept tape with 8mm to 32mm tape width. |
| Tube input | Support 150mil，207mil，300mil package. |
Control System
| Operating system | PC base control with Windows XP Embedded |
| Display | TFT LCD Monitor |
| Data entry | Keyboard and mouse |
Power System
| Input voltage | AC 220~245V |
| Input frequency | 50/60Hz |
| Power consumption | 1.0KVA |
Air System
| Air pressure | 0.6MPa(5.5~6.0Kg/cm2) |
| Air flow | 50liter/min |
