Soken DAC-BHW-R - AC Magnetic Characteristic Test Set

DAC-BHW-R can test magnetic characteristics of toroidal cores (Ring Cores, Cut cores) at 50 or 60Hz. Magnetic Flux Density (B) to Magnetic Force (H), and Magnetic Flux Density (B) to Watt Loss (W) can be judged by simple operation, and a curve in B-H and B-W can be observed with an external oscilloscope (option).

DAC-BHW-R is desirable for your management of the quality of toroidal cores.

Composition

• AC Magnetic Characteristic Tester x 1set
• Power Amplifier 1kVA x 1set
• Testing Transformer Unit x 1 set
• Measuring cable (B+H) x 1 set (φ ≧30mm)

Test Specimen

• Specimen: Ring Core, Cut Core
• Size: 30 – 1000mm (inner Meter)
• Thickness: 10 – 300mm
• Cross Area: 100 – 90000mm²
• Magnetic Pass Length: 100 – 4000mm
• Density: 3.00 – 9.99g/cm³

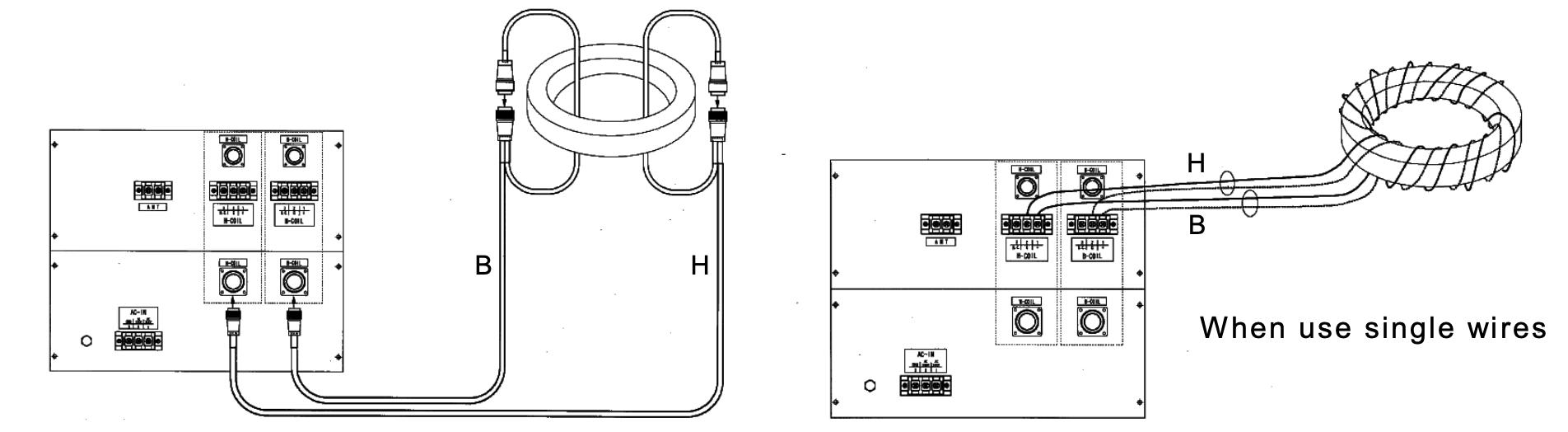

Connecting Diagrams

Test Specifications other than the above are available upon inquiry. Specifications are subject to change without prior notices for improvements.

General (example)
