APM SPST300VAC3000W-2-9 - Linked 3-Phase AC Power Supply System
It is a 3-phase output programmable AC power supply which provides with high power density. With high speed DSP+CPLD control, high frequency PWM technology, active PFC design, It is able to provide not only stable DC/AC output power, but also 3-phase / 1-phase output. It is featured with high power density, high reliability and high precision, meanwhile it possesses operation interface of touch screen and keys manually. It is able to analog output normal or abnormal power input for electrical device to meet test requirements, which is applicable to electric, lighting, aviation sectors, etc. It could be applied to enterprise’s production test as well.
Basic Function:

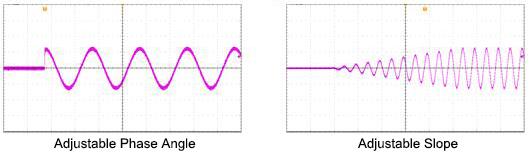

Adjustable Phase Angle/Slope
Adjustable Phase Angle/Slope is applicable to verification test of ON/OFF inrush current testing. This function is applicable to start inductive or capacitive load with large capacity to avoid high current when instantaneously start the device.
High Output Current Factor
The surge current could reach 5-6 times of the rated current, especially suitable for inrush current testing.

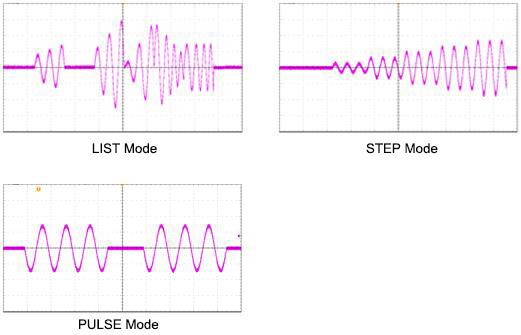

Output Simulation Sequence and Disturbance Simulation
Capable of simulating power line disturbance simulation test.

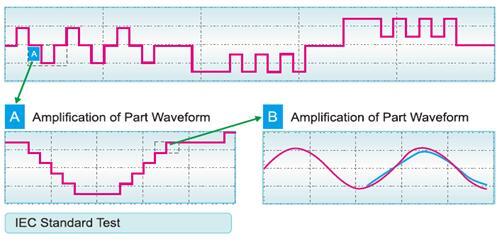

Built-in IEC Standard Test
Built-in IEC standard test could be recalled directly
- Large touch color screen, possess complete functions and easy to operate
- AC+DC mixed or independent output mode for voltage DC offset simulation
- Capable of setting output slope/phase angle, 0~359.9°
- Output frequency 15~1000Hz, capable of setting output slope of voltage and frequency
- High output crest factor could satisfy surge tests requirements
- Multiple current measuring level selection. Increase measurement accuracy
- Standard USB data interface, support CSV file waveform import
- OCP/OVP/OPP/OTP/ Short circuit protection
- Built-in power meter, which is capable of measuring 15 electrical parameters per phase, including voltage, current, power, etc
- With reverse current protection to avoid current flowing backward
- Capable of setting voltage and current output restriction, support for constant current output mode
Input
| Voltage | 90~265VAC |
| Frequency | 47~63Hz |
| Phase | 3 Phase, 4Wire + Ground / Y Connect |
| Max. Current | 45A |
| Power Factor at 220VAC Input,Full Load | ≥ 0.98 Active PFC |
| Efficiency | >85.5% (Peak) >85% at 220VAC, 50Hz input/220VAC,50Hz output,Full Load |
3-Phase Output Mode (Per Phase)
| AC Power(Total) | 3000VA | ||||
| AC Power(Per Phase) | 1000VA | ||||
| Max.Current (r.m.s) |
| ||||
| Max.Current (Peak) |
|
1-Phase Output Mode
| AC Power(Total)[1] | 2700VA | ||||
| Max.Current (r.m.s) |
| ||||
| Max.Current (Peak) |
| ||||
| DC Power (Per Phase) | 2700W | ||||
| Max.Current (Total) |
|
3-Phase Output Mode(Per Phase)
| Total Harmonic Distortion (THD) | <0.5% (Resistive Load) at 15.0~70.0Hz and output voltage within the 80~140VAC at Low Range or the 160~280VAC at High Range; <1% (Resistive Load) at 70.1~500Hz and output voltage within the 80~140VAC at Low Range or the 160~280VAC at High Range; <1% (Resistive Load) at 501~1000Hz and output voltage within the 100~140VACat Low Range or the 160~280VAC at High Rang; | ||||||||||||||||
| Crest Factor(CF) | ≤6 | ||||||||||||||||
| Load Regulation | ±0.2%F.S. (Resistive Load) at 15~100Hz ±0.5%F.S. (Resistive Load) at >100Hz | ||||||||||||||||
| Line Regulation | ± 0.1V | ||||||||||||||||
| Voltage(AC) (L-N) |
| ||||||||||||||||
| Phase Angle (Starting /Ending) |
| ||||||||||||||||
| Voltage(DC) |
| ||||||||||||||||
| Current OC Fold Mode |
| ||||||||||||||||
| Frequency |
| ||||||||||||||||
| Programmable Output Impedance | Not Support | ||||||||||||||||
| Harmonic & Interharmonics Simulation | Not Support | ||||||||||||||||
Power Meter Function(Per Phase)
| Voltage |
| ||||||||||
| Frequency |
| ||||||||||
| Current[2] (r.m.s) |
| ||||||||||
| Current[2] (Peak) |
| ||||||||||
| Power |
| ||||||||||
| Power Apparent(VA) |
| ||||||||||
| Power Resistive (VAR) |
| ||||||||||
| Power Factor (PF) |
| ||||||||||
| Harmonic |
| ||||||||||
Extra Function
| Slew Rate |
| ||||||||
| Remote Sense |
| ||||||||
| Calibration | Firmware-based calibration through the digital interface or front panel display | ||||||||
| Test Function | Not Support | ||||||||
| Graphic Display | 4.3'' Color touch LCD | ||||||||
| Operation Key Feature | Soft key, Numberic key, Rotary Knob, USB port for transfer and upgrading firmware | ||||||||
| Rack mount Handles | Yes | ||||||||
| FAN | Temperature Control | ||||||||
| Protection Circuits | OCP, OVP, OPP, OTP, RCP, PRI_UVP, PRI_OVP, PRI_OTP, PRI_OCP, USB_OCP | ||||||||
| Interface | USB, RS485, RS232, LAN(Option); GPIB(Option) | ||||||||
Environmental
| Operating Temperature | 0°C~40°C |
| Storage Temperature | -40°C~85°C |
| Altitude | 2000m |
| Relative Humidity | 5%~95%, non-condensing |
| Temperature Coefficient | 100ppm/°C at Voltage, 300ppm/°C at Current,100ppm/°C at Frequency |
Mechanical
| Dimensions(WxHxD) | 540.0 x 400.0 x 640.0 mm |
| Package Dimensions (WxHxD) | 660.0 x 710.0 x 760.0 mm |
| Unit Weight | 88.7kg |
| Shipping Weight | 108.7kg |
Regulatory Compliance
| CE Mark | Installation Overvoltage Category II;Class II equipment;indoor use only. |
[1] In single phase mode, the current shall be reduced to 90% for the consideration of current sharing.
[2] The tolerance will change slightly in high frequency condition;
All specifications are subject to change without notice.
