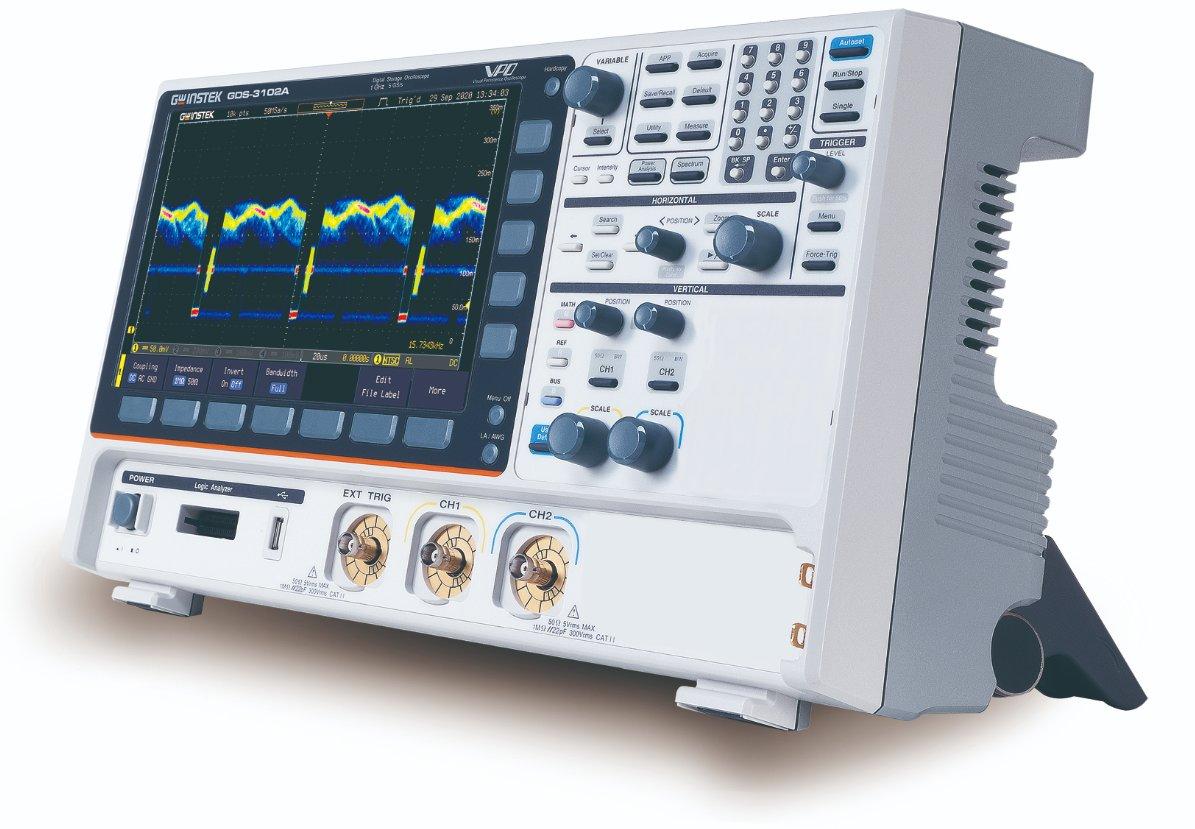

GW Instek GDS-3102A - GDS-3102A 1 GHz Digital Storage Oscilloscope

• 1 GHz Bandwidth, 2 or 4 Input Channels
• 5 GSa/s Real-time Sampling Rate (half channels) ;
• 2.5 GSa/s Real-time Sampling Rate (all channels)
• Per Channel 200 Mpts Memory Depth
• 200,000 wfms/s of Waveform Update Rate
• 10.2 in (259 mm) 800 x 480 TFT LCD Display
• 490,000 Segments of Segmented Memory and the Waveform Search Function to Optimize the Efficiency of Record Length
• Zoom Window and Play/Pause Rapidly Navigate the Waveforms
• 38 sets of Automatic Measurement Offer Various Measurement Selections
• High resolution acquisition mode
• I²C/SPI/UART/CAN/LIN Serial Bus Trigger and Decoding Functions
• Dual Channel Spectrum Analyzer (DC to 2.5 GHz) with spectrogram
• Dual Channel 25 MHz Arbitrary Waveform Generator
• Optional 13 Sets of Power Analysis Measurements
• Optional 16 Digital Channels with a Logic Analyzer (MSO)
• Flexible Remote Control Connectivity (Standard: USB/LAN/RS-232; Option: GPIB

Do you have a GDS-3102A 1 GHz Digital Storage Oscilloscope that needs to be calibrated?

We offer standard traceable calibration and ISO 17025 accredited calibration services.
