ATE / Bench Calibrators & DMMs


Time Electronics 5077 - Power Calibrator

A high accuracy AC and DC power calibrator suitable for calibrating watt-meters, power meters, and kW-Hr meters. Supplied with its own “PC Virtual Control” software allowing the user full control via laptop or PC. Frequency can be set in 0.1Hz steps from 45 to 400Hz, and phase in 0.1degree steps. Alternatively power factor (PF) can be set in 0.01 steps. The output can be displayed as VA or Watts.

by quote only

A high accuracy AC and DC power calibrator suitable for calibrating watt-meters, power met...

View Product

Time Electronics 5065 - 50 6.5 digit Multimeter

The 5065 is a high performance, versatile 6½ digit bench multimeter with 19 measurement functions. Low cost, simple operation, stability, and high accuracy make the 5065 an ideal DMM for a variety of applications. In addition high speed means both the sampling rate and the data transfer rate can achieve 2000 readings per second.

by quote only

The 5065 is a high performance, versatile 6½ digit bench multimeter with 19 measurement f...

View Product

Time Electronics 5051 - Plus Multifunction Calibration System

The 5051Plus combines a precision multifunction calibrator, 6½ digit multimeter, and industrial touch screen PC. Offering high performance calibration and maximum functionality, it provides the foundation for an efficient calibration program. By integrating the calibrator, DMM and PC in one unit minimal bench space is used in the laboratory. This is also beneficial for field calibration work as the 5051Plus replaces the need for transporting several instruments.

by quote only

The 5051Plus combines a precision multifunction calibrator, 6½ digit multimeter, and indu...

View Product

Time Electronics 5045 - Oscilloscope Calibrator

Quick and Easy Oscilloscope Calibration to 600MHz The 5045 is a versatile, high accuracy calibrator capable of calibrating digital and analogue oscilloscopes, timer/counters, and frequency meters. It provides a wide range of outputs for amplitude, frequency, period and bandwidth. Amplitude calibration is achieved by a DC signal or 1kHz square-wave, ranging from 1mV to 220V (2V max for 50 ohm loads). Deviation up to ±9.99% allows fine adjustment of amplitude and direct readout of error.

by quote only

Quick and Easy Oscilloscope Calibration to 600MHz The 5045 is a versatile, high accuracy ...

View Product

Time Electronics 5033 - 3 Channel DC Power Source

The 5033 provides 3 independent channels of 0 to 20V DC, settable in 10µV steps. A 2A drive capability allows up to 40W per channel to be output. A precision current shunt is incorporated in each channel and allows read-back of the current supplied. The high resolution on the voltage and current make this power source ideal for calorimetry and other applications requiring very accurate control of DC power input. Power can be controlled to better than a few ppm.

by quote only

The 5033 provides 3 independent channels of 0 to 20V DC, settable in 10µV steps. A 2A dri...

View Product

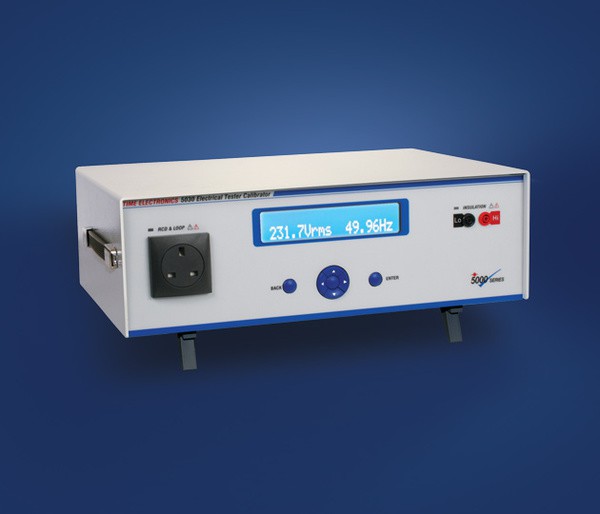

Time Electronics 5030 - Electrical Tester Calibrator

A precision instrument designed to calibrate RCD, loop, insulation, earth testers and multifunction installation testers. The 5030 accurately simulates RCD trip times and measures currents produced by RCD testers. It replicates loop impedance and auto adjusts for local line impedance. It also provides insulation resistances and measures test voltages and currents.

by quote only

A precision instrument designed to calibrate RCD, loop, insulation, earth testers and mult...

View Product

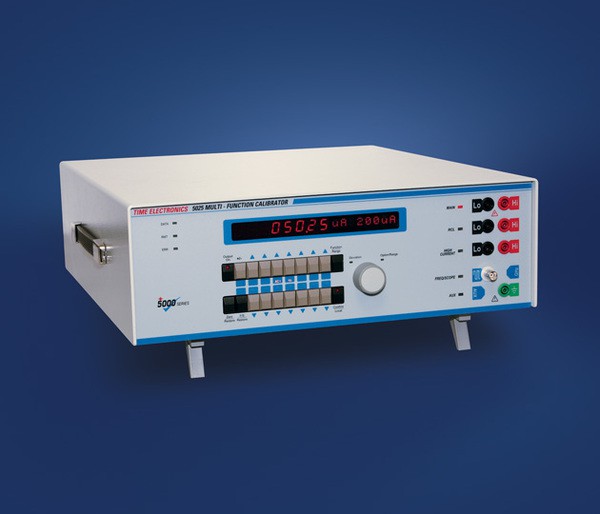

Time Electronics 5025E - Multifunction Calibrator

A precision multi-product calibrator designed for wide calibration workload coverage at an affordable cost. Accurately test and verify both traditional and new test equipment with a calibrator that meets both technical and budget requirements. The 5025E is ideal for companies requiring a calibrator that can be implemented quickly and easily, providing immediate return on investment. With increased capabilities it can be used as a multimeter calibrator and much more.

by quote only

A precision multi-product calibrator designed for wide calibration workload coverage at an...

View Product

Time Electronics 5025C - Multifunction Calibrator

A high performance multi-product calibrator that provides the foundation for fast and cost-effective calibration. Designed for a wide workload the 5025 can be used to accurately test and verify both traditional and new test equipment. The standard unit is fitted with AC/DC voltage to 1050V, AC/DC current to 22A, digital frequency to 10MHz, decade resistance to 1GΩ, conductance and thermocouple simulation. Further options enhance calibration capabilities and can be added as per customer requirement.

by quote only

A high performance multi-product calibrator that provides the foundation for fast and cost...

View Product

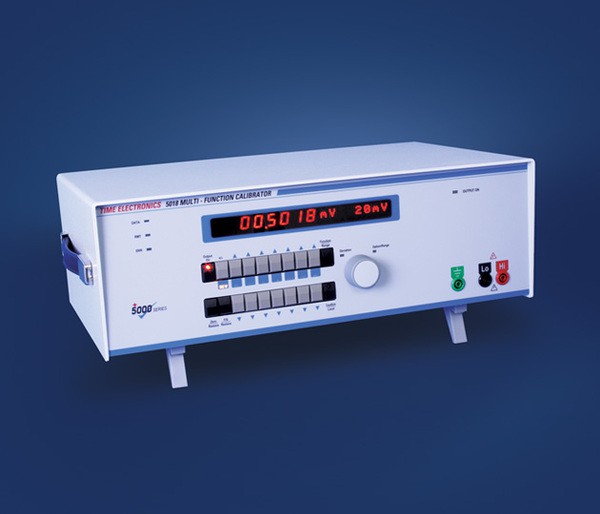

Time Electronics 5018 - Programmable DC/AC V/I Calibrator

The 5018 is a versatile instrument that covers a wide range of applications. It can be configured as a simple benchtop DC voltage source or advanced AC/DC voltage and current calibrator controlled via PC or laptop, performing any number of tasks as part of a complex ATE test rig.

by quote only

The 5018 is a versatile instrument that covers a wide range of applications. It can be con...

View Product

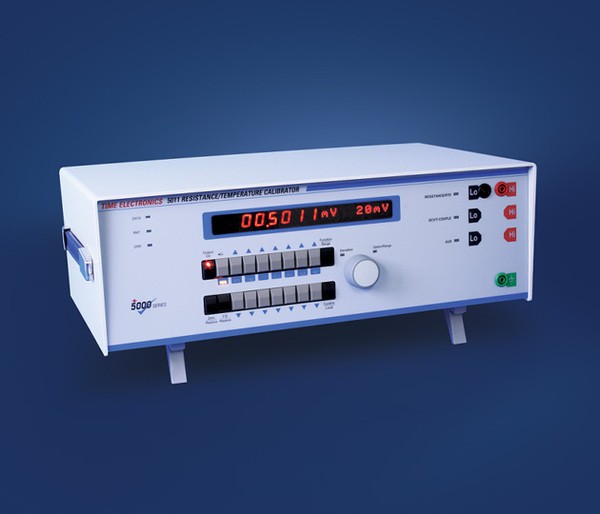

Time Electronics 5011 - Resistance / Temperature Calibrator

The 5011 is a versatile, high accuracy calibrator that can be used in a wide range of applications across various industries. Primarily used as a programmable resistance / RTD source, the 5011 provides precision resistance with a best accuracy of 0.01% and 1mΩ resolution (50Ω to 1kΩ). Internal options for increased capabilities can be fitted as per customer requirement. These include DC voltage and thermocouple simulation, DC current, and frequency. The 5011 can be used to cover a wide workload as a laboratory calibrator or be incorporated into an automated test system. A rack mount kit option is also available.

by quote only

The 5011 is a versatile, high accuracy calibrator that can be used in a wide range of appl...

View Product
