Sencore CM2125 - Computer Monitor Analyzer

Sencore CM2125: The CM2125 includes a fully programmable RGB video and sync generator displaying patterns on computer monitors. Horizontal and vertical scan frequencies, pixel resolutions, and porch and sync times are all programmable so you can service any monitor.

by quote only

Sencore CM2125: The CM2125 includes a fully programmable RGB video and sync generator disp...

View Product

Sencore CM2220 - Computer Monitor Analyzer

A complete and programmable high bandwidth RGB video generator with color analysis, unique "Process Generator"™, and a complete set of video test patterns to help you identify monitor defects Complete analyzing system providing special features to round out the package Date storage disc for saving and loading formats, alignments, and testing procedures Keyboard interface for easy entering of alignments and procedures DDC1 and DDC2B compatible for digital display channel testing Expandable for future accessories to enhance your monitor troubleshooting capabilities Fully programmable scan frequency and pixel RGB video generator Video bandwidth to 220 MHz Pixel resolution to 2048 horizontal and vertical Scan frequencies to 250 kHz horizontal and 250 Hz vertical Adjustable blanking times, color levels, signal level, and aspect ratio Integrated Auto "ColorPro"™ to give you the confidence every monitor you service is operating to the manufacturer's standards Exclusive "Process Generator"™ for entering interactive alignment and performance testing procedures to guide you through routine testing and alignments

by quote only

A complete and programmable high bandwidth RGB video generator with color analysis, unique...

View Product

Sencore CM2250 - MHz Computer Monitor Analyzer

A complete and programmable high bandwidth RGB video generator with color analysis, unique "Process Generator"™, and a complete set of video test patterns to help you identify monitor defects Complete analyzing system providing special features to round out the package: Data storage disc for saving and loading formats, alignments, and testing procedures Keyboard interface for easy entering of alignments and procedures DDC1 and DDC2B compatible for digital display channel testing Expandable for future accessories to enhance your monitor troubleshooting capabilities Fully programmable scan frequency and pixel RGB video generator: Video bandwidth to 250 MHz Pixel resolution to 2048 horizontal and vertical Scan frequencies to 250 kHz horizontal and 250 Hz vertical Adjustable blanking times, color levels, signal level, and aspect ratio Integrated Auto "ColorPro"™ to give you the confidence every monitor you service is operating to the manufacturer's standards. Exclusive "Process Generator"™ for entering interactive alignment and performance testing procedures to guide you through routine testing and alignments.

by quote only

A complete and programmable high bandwidth RGB video generator with color analysis, unique...

View Product

Sencore CM2250-PC - Computer Monitor Analyzer

A fully programmable high bandwidth RGB video generator NTSC, PAL, Analog, TTL and ECL video outputs (ECL requires optional adapter). Superior output protection. DDC2B and DDC1 (VESA) compatible for testing the display data channel. A complete set of video test patterns to help identify monitor defects. Easy to use Windows GUI, compatible with Plug-n-Play for simplified setup and easy testing. Includes Auto "ColorPro II"™ Color Analyzer for fast, accurate chromaticity measurements over a wide range of luminance on all CRTs, including television and color monitors. Exclusive "Process Generator"™ for entering interactive alignment and performance testing procedures to guide you through routine testing and alignments. DPMS (VESA) automated testing.

by quote only

A fully programmable high bandwidth RGB video generator NTSC, PAL, Analog, TTL and ECL vi...

View Product

Sencore CM2250-PC - "Pro" Computer Monitor Analyzer

A fully programmable high bandwidth RGB video generator. NTSC, PAL, Analog, TTL and ECL video outputs (ECL requires optional adapter). Superior output protection. DDC2B and DDC1 (VESA) compatible for testing the display data channel. A complete set of video test patterns to help identify monitor defects. Easy to use Windows GUI, compatible with Plug-n-Play for simplified setup and easy testing. Includes Auto "ColorPro II"™ Color Analyzer for fast, accurate chromaticity measurements over a wide range of luminance on all CRTs, including television and color monitors. Exclusive "Process Generator"™ for entering interactive alignment and performance testing procedures to guide you through routine testing and alignments. DPMS (VESA) automated testing.

by quote only

A fully programmable high bandwidth RGB video generator. NTSC, PAL, Analog, TTL and ECL v...

View Product

Sencore CP288 - Auto "ColorPro II" Color Analyzer

Easy-to-use WindowsTM GUI, giving you four options for displaying your measured data; a CIE Chromaticity Diagram, large CIE coordinates, RGB Levels, and the Auto "ColorPro II" control window. Industry standard measurement units and display modes - readings are displayed in Yxy, RGB, and color temperature in degrees Kelvin. Luminance units are selectable between foot-lamberts and cd/m2 (nits). Accuracy that only an engineer would require - the CP288 has the specs necessary to do a complete white-balance alignment, so you can be sure you match display manufacturer specifications. Sync-locked measurements - automatically reads and displays the refresh rate of the display under test. Programmable reference data - references may be entered and stored by the user, and is limited only by the amount of memory available on the host system. Tracking data is made easy - print your analysis data straight from the measurement screen. The printed form will contain the manufacturer's name, model number, serial number, measured data, and comments.

by quote only

Easy-to-use WindowsTM GUI, giving you four options for displaying your measured data; a CI...

View Product

Tradeport International HP-9150 - Scope Probe Set, DC~150 MHz, Selectable X1/Ref/X10

x10 POSITION: Bandwidth: DC~150MHz Rise Time: 2.3ns Input Capacitance: Approximately 15pF Compensation Range: 10pF~35pF Attenuation Ratio: 10:1 Input Resistance: 10MW when used with oscilloscopes with 1 MW input Working Voltage: 600V DC incl. peak AC derating with frequency x1 POSITION: Bandwidth: DC~6MHz Rise Time: 58ns Input Capacitance: 90pF plus oscilloscope capacitance. Attenuation Ratio: 1:1 Input Resistance: 1MW (oscilloscope input) Working Voltage: 600V(DC incl. peak AC derating with frequency) Position Ref.: Probe tip disconnected, oscilloscope input grounded

by quote only

x10 POSITION: Bandwidth: DC~150MHz Rise Time: 2.3ns Input Capacitance: Approximately 15...

View Product

F.W. Bell 5080 - FW Bell Hall Effect Hand-Held Gaussmeter

FW Bell 5080: The 5000 Series hall effect portable gaussmeters represent the latest design from the world leader in magnetic measuring equipment. F.W. Bell''s exclusive Dynamic probe Correction allows measurements from 0 to 30 kG with a basic accuracy of 1%. Key features include Auto Zero, Min/Max./Peak Hold, Auto Range and Relative Mode. All models allow the user to select Gauss or tesla readings. The Model 5080 also has a selection for readings in Ampere/Meters and features a corrected analog output (+ 3 V F.S.) and an RS-232 communications port.

by quote only

FW Bell 5080: The 5000 Series hall effect portable gaussmeters represent the latest design...

View Product

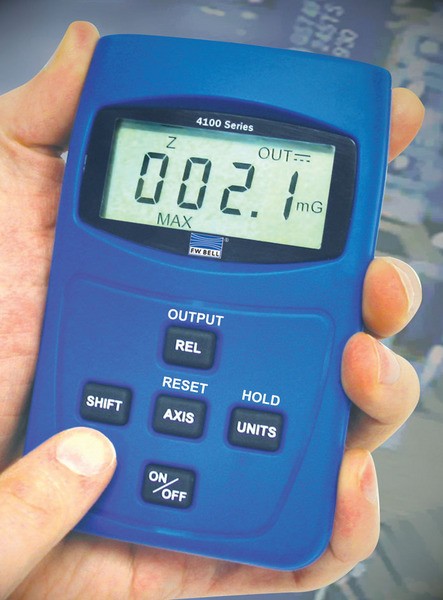

F.W. Bell 4000 Series ELF Meters - FW Bell 4000 Series 4000 Series ELF Gaussmeter

0.1 mG Resolution High Accuracy Three Axis Technology Maintains Accuracy Regardless of Orientation # True RMS Measurement NIST Traceable Calibration at 50/60 Hz µT Scale (Option) Complete with Deluxe Carrying Case and Battery Hand-Held Portability at an Affordable Price

by quote only

0.1 mG Resolution High Accuracy Three Axis Technology Maintains Accuracy Regardless of Or...

View Product

GW Instek GLP-1A - Logic Probe and Pulser

The GLP-1A logic pulser can be used to perform in-circuit testing of TTL, CMOS, and many other logic devices at a maximum of 50MHz. The GLP-1A is enhanced with a logic probe function with a minimum detectable pulse width of 10 ns, providing enough sensitivity for most applications. A Short 10 sec pulse width assures that no damage will occur to circuits whilst testing. With a weight less than 50g, a non-slip grip, and an external sync input, GLP-1A provides comfort and reliability for various troubleshooting tasks.

by quote only

The GLP-1A logic pulser can be used to perform in-circuit testing of TTL, CMOS, and many o...

View Product
