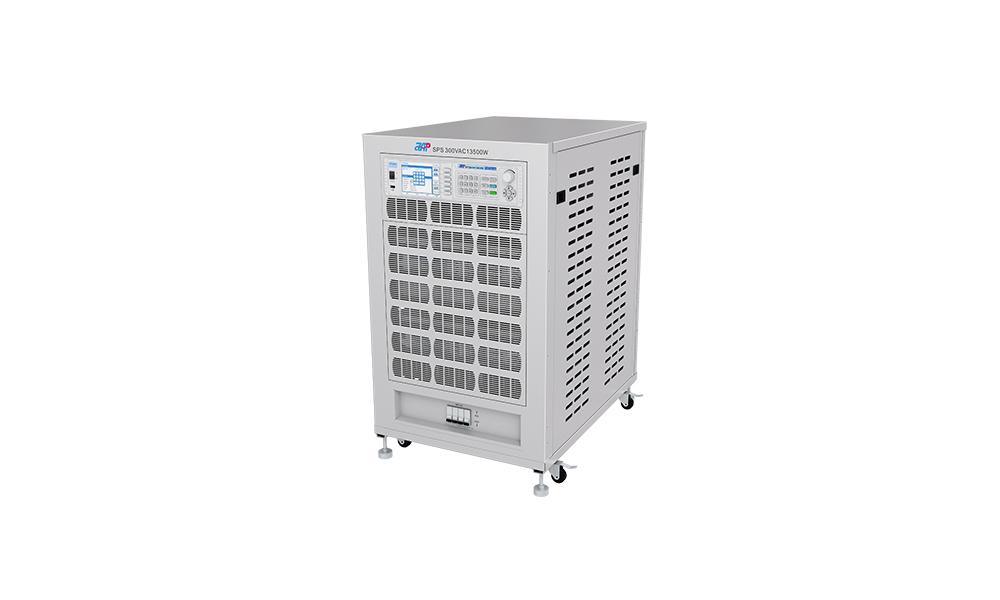

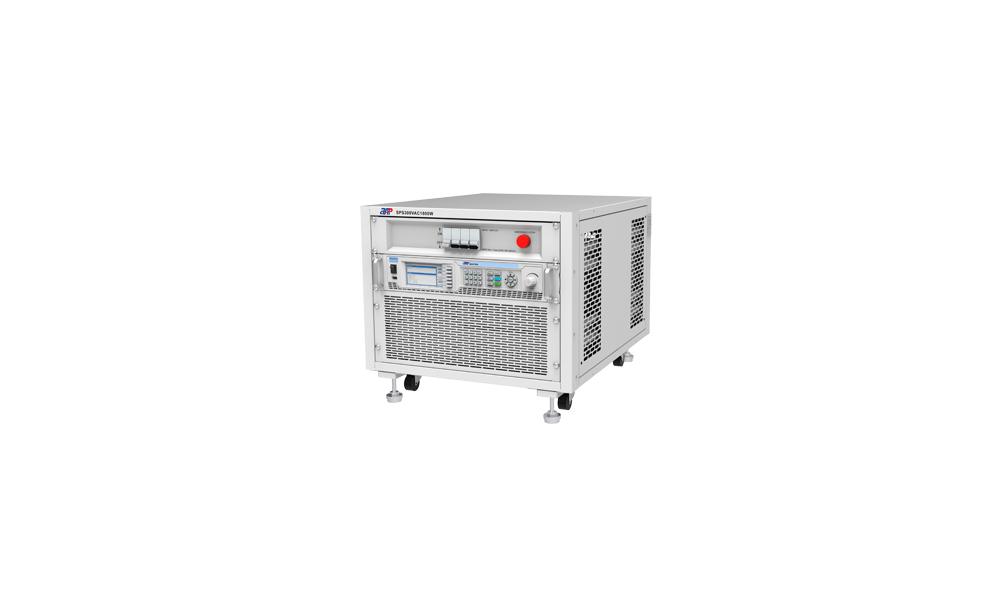

Three Phase AC Source System from APM Technologies

High Efficiency
Up to 13.5 kVA output power, active PF up to 0.99, high efficiency up to 85%

High Precision
Up to 0.2% voltage accuracy, up to 0.4% current accuracy, up to 0.03% frequency accuracy.

High Stability
Continuable and stable working with temp. 0~40℃ in full load for a long time, and has passed CE approval

• 5.6’’ large touch color screen
• AC+DC mixed or independent output mode
• Capable of setting output slope/phase angle
• Built-in IEC standard test function
• Build-in multiple protection functions
• Build-in power meter to measure the output parameters

Output Voltage	150VAC/300VAC
1800W	5.6A/2.8A
3000W	9.2A/4.6A
4500W	13.8A/6.9A
5400W	16A/8A
8100W	27.6A/13.8A
10800W	32A/16A
13500W	46A/23A







There are some differences between Single Units, Series/Parallel System and Three phase AC source system as below.

Function	Single Unit	Series/ Parallel System	Three phase AC source system
Output frequency Range	15~1200Hz	15~1200Hz	15~1000Hz
Built-in IEC Standard	IEC61000-4-11 IEC61000-4-14 IEC61000-4-28 IEC61000-3-2 IEC61000-3-3 IEC61000-4-13	IEC61000-4-11 IEC61000-4-14 IEC61000-4-28 IEC61000-3-2 IEC61000-3-3 IEC61000-4-13	IEC61000-4-11
Hamonics/Inter-harmonics Generation Simulation and Harmonics Measurement	Support	Support (Only support Harmonics Measurement of the Master Unit)	Not Support
Special Function(Dimmer Function, special LITS)	Support	Support	Not Support
Output Impedance	Support	Not Support	Not Support
Series or Parallel connection	Support	Not Support	Not Support
