Time Electronics 7077 - Process Calibrator Module

The 7077 is a high performance process calibrator module that combines source and measurement functions for thermocouples, PT100s, μV, mV, and mA. As a multifunction module the 7077 combines accuracy with simple operation, making it ideal for process plant applications.

by quote only

The 7077 is a high performance process calibrator module that combines source and measurem...

View Product

Time Electronics 7068 - RTD Temperature Calibrator Module

The 7068 is a process control module that combines a precision digital thermometer (using RTD probes) with an RTD/ohms calibrator. Easy to use, it solves the problem of making high accuracy temperature measurements without using bulky mains powered instrumentation. It can also be used as an external temperature reference for dry block and other precision temperature baths.

by quote only

The 7068 is a process control module that combines a precision digital thermometer (using ...

View Product

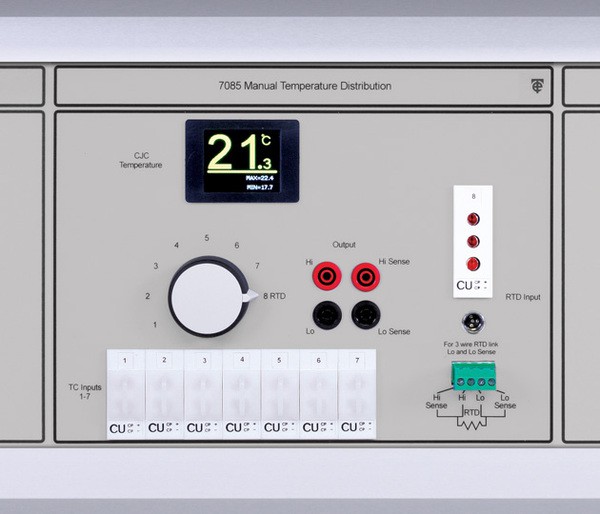

Time Electronics 7085 - Temperature Distribution Module

The 7085 is a temperature distribution panel module that switches 7 thermocouple inputs and 1 RTD reference to a common output. To simplify thermocouple calibration the Cold Junction Compensation (CJC) temperature is displayed in clear easy-to-read digits on an LCD colour display.

by quote only

The 7085 is a temperature distribution panel module that switches 7 thermocouple inputs an...

View Product

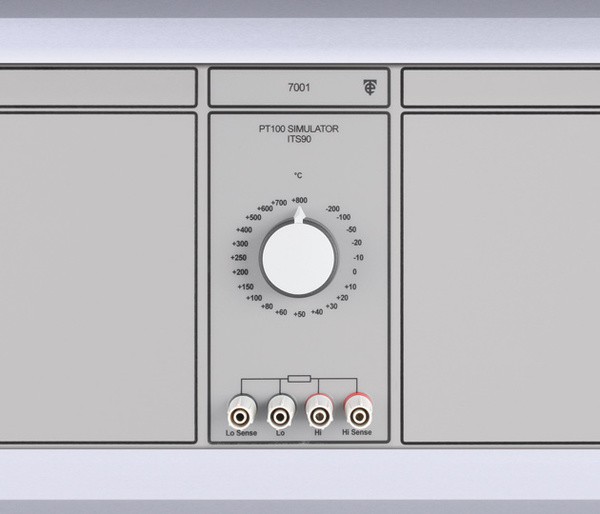

Time Electronics 7001 - PT Simulator Module

The 7001 is a precision simulator module for PT100 0.3850 platinum resistance elements used for accurate temperature measurement. It follows the PT100 scale from -200°C to +800°C with 23 set points. High performance metal film resistors are used throughout which ensures a good temperature coefficient and long term stability.

by quote only

The 7001 is a precision simulator module for PT100 0.3850 platinum resistance elements use...

View Product

Time Electronics 7084 - Line Pressure Controller Module

The 7084 is a line pressure controller module used to provide adjustable regulated pressure for connection bench modules and external pressure devices. It is particularly suitable for use with the 7038 and 7065 pressure indicator modules. Incoming pneumatic line pressure is connected via the rear of the console, with output via the front panel port.

by quote only

The 7084 is a line pressure controller module used to provide adjustable regulated pressur...

View Product

Time Electronics 7065 - Pressure Indicator Module

The 7065 is a precision indicator module that can be used for pressure or vacuum calibration. It is a simple operation module ideal for calibrating and cross-checking pressure gauges, sensors, transmitters, transducers, indicators, switches, and many other devices. The following versions are available; Vacuum, 0.2, 2, 5, 10, 20, 35, 70, 100, 200, 400, or 600bar.

by quote only

The 7065 is a precision indicator module that can be used for pressure or vacuum calibrati...

View Product

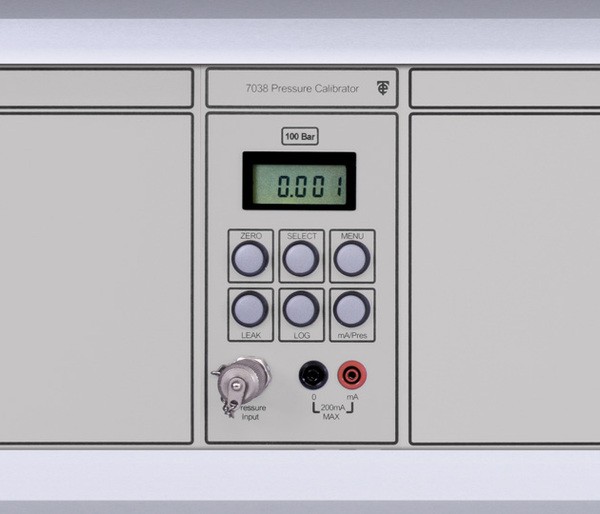

Time Electronics 7038 - Multifunction Pressure Indicator Module

The 7038 is a precision multifunction indicator module that can be used for pressure or vacuum calibration. It also has the provision to measure process loop current. This allows pressure transmitters and converters to be calibrated directly (using external DC supply or accompanying module). The following versions are available; Vacuum, 0.2, 2, 5, 10, 20, 35, 70, 100, 200, 400, or 600bar.

by quote only

The 7038 is a precision multifunction indicator module that can be used for pressure or va...

View Product

Time Electronics 7066 - Differential Pressure Calibrator Module

The 7066 is a precision module designed for very stable measurement of differential pressures between its two output ports, enabling the calibration of differential pressure gauges, transducers, and transmitters. There are five available versions, and the module is built according to the customer's required range, either vacuum, 0.2, 2, 5, or 10bar.

by quote only

The 7066 is a precision module designed for very stable measurement of differential pressu...

View Product

Time Electronics 7032 - Semi-Automatic Pressure Calibrator Module

A pneumatic pressure module designed to speed up routine calibration of pressure gauges, indicators and pressure transmitters. Features include a 4.5 digit LCD display with 5 selectable pressure units, zeroing switch, regulated output, and vent button. Best accuracy is 0.04% of range and a maximum display resolution is 0.005% of range. Line pressure is via the input port on the rear of the console with quick release connection.

by quote only

A pneumatic pressure module designed to speed up routine calibration of pressure gauges, i...

View Product

Time Electronics 7064 - High Pressure Calibrator Module

The 7064 is a high pressure calibration and control module designed for applications up to 200bar. It is fitted with a self-relieving regulator, two needle valves and a dual function front panel pressure port for precision output and measurement. The pneumatic supply connection (minimess fitting) is located on the rear of the bench console and is suitable for input via gas bottle or pump. There are four available versions, and the module is built according to the customer's required range, either 35, 70, 100, or 200bar.

by quote only

The 7064 is a high pressure calibration and control module designed for applications up to...

View Product
