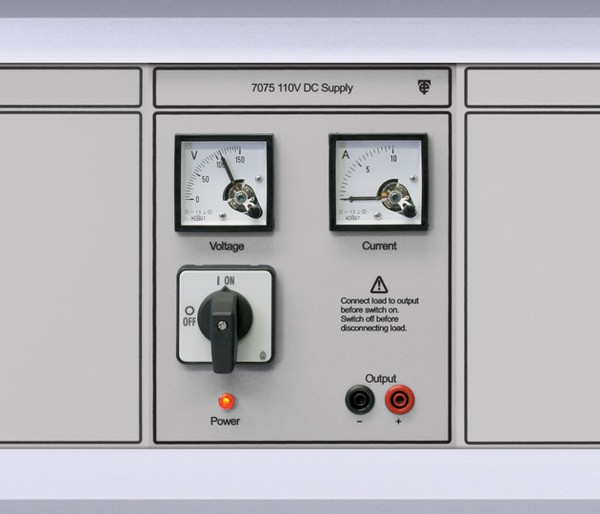

Time Electronics 7075 - Fixed 110V DC Power Module

The 7075 provides an isolated DC supply. Output is pre-specified between 96 and 144 volts with a current capacity up to 7.5 amps. Output voltage and current are monitored on two analogue moving coil meters, access is from two 4mm shrouded sockets.

by quote only

The 7075 provides an isolated DC supply. Output is pre-specified between 96 and 144 volts ...

View Product

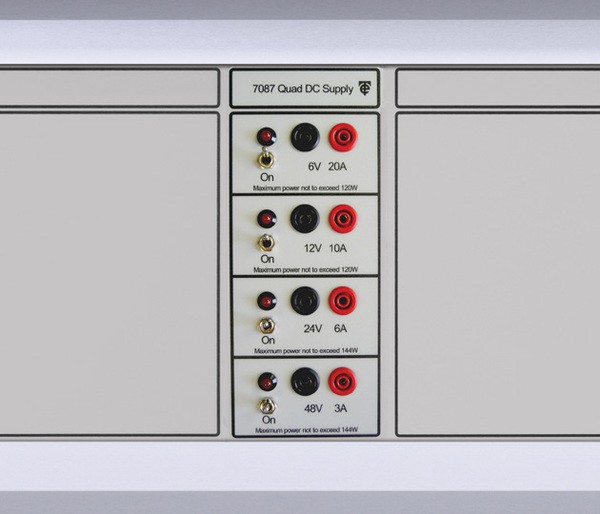

Time Electronics 7087 - Quad Fixed DC Power Supply Module

The 7087 is a quad DC power supply that provides four fixed independent floating supplies in one compact module. It is suitable for powering loop instrumentation and other devices. The voltage and current ratings are 6V (20A), 12V (10A), 24V (6A), 48V (3A).

by quote only

The 7087 is a quad DC power supply that provides four fixed independent floating supplies ...

View Product

Time Electronics 7083 - 2 x 24V Fixed DC power Supply module

The 7083 dual 24V DC power supply provides two independent 24V (2A) supplies. Both are floating with respect to each other, and ground. It is suitable for powering loop signal instrumentation and other equipment requiring 24V DC.

by quote only

The 7083 dual 24V DC power supply provides two independent 24V (2A) supplies. Both are flo...

View Product

Time Electronics 7082 - Mains Power Controller Module

Mains power for Time Electronics CalBench is controlled via the 7082 single-phase unit equipped with two mains power sockets. <br />A further four sockets are fitted on the underside of the primary console, with two positioned at either end of the console, providing outlets for use across the bench. On the module a main power switch, residual current circuit breaker with over-current protection (RCBO), and under console lighting switch are included. Mains input and lighting supply lines are filtered. The 7082 is fitted as standard in every CalBench system.

by quote only

Mains power for Time Electronics CalBench is controlled via the 7082 single-phase unit equ...

View Product

Time Electronics 7051 - Multifunction Calibrator and Bench Control Centre

Universal calibration and system control Mounted centrally in the primary console the 7051 combines a precision multifunction calibrator, 6½ digit multimeter, and touch screen PC. It is the principle module for on-site facilities that require high performance calibration and maximum functionality.

by quote only

Universal calibration and system control Mounted centrally in the primary console the 705...

View Product

Time Electronics 5077 - Power Calibrator

A high accuracy AC and DC power calibrator suitable for calibrating watt-meters, power meters, and kW-Hr meters. Supplied with its own “PC Virtual Control” software allowing the user full control via laptop or PC. Frequency can be set in 0.1Hz steps from 45 to 400Hz, and phase in 0.1degree steps. Alternatively power factor (PF) can be set in 0.01 steps. The output can be displayed as VA or Watts.

by quote only

A high accuracy AC and DC power calibrator suitable for calibrating watt-meters, power met...

View Product

Time Electronics 5065 - 50 6.5 digit Multimeter

The 5065 is a high performance, versatile 6½ digit bench multimeter with 19 measurement functions. Low cost, simple operation, stability, and high accuracy make the 5065 an ideal DMM for a variety of applications. In addition high speed means both the sampling rate and the data transfer rate can achieve 2000 readings per second.

by quote only

The 5065 is a high performance, versatile 6½ digit bench multimeter with 19 measurement f...

View Product

Time Electronics 5051 - Plus Multifunction Calibration System

The 5051Plus combines a precision multifunction calibrator, 6½ digit multimeter, and industrial touch screen PC. Offering high performance calibration and maximum functionality, it provides the foundation for an efficient calibration program. By integrating the calibrator, DMM and PC in one unit minimal bench space is used in the laboratory. This is also beneficial for field calibration work as the 5051Plus replaces the need for transporting several instruments.

by quote only

The 5051Plus combines a precision multifunction calibrator, 6½ digit multimeter, and indu...

View Product

Time Electronics 5045 - Oscilloscope Calibrator

Quick and Easy Oscilloscope Calibration to 600MHz The 5045 is a versatile, high accuracy calibrator capable of calibrating digital and analogue oscilloscopes, timer/counters, and frequency meters. It provides a wide range of outputs for amplitude, frequency, period and bandwidth. Amplitude calibration is achieved by a DC signal or 1kHz square-wave, ranging from 1mV to 220V (2V max for 50 ohm loads). Deviation up to ±9.99% allows fine adjustment of amplitude and direct readout of error.

by quote only

Quick and Easy Oscilloscope Calibration to 600MHz The 5045 is a versatile, high accuracy ...

View Product

Time Electronics 5033 - 3 Channel DC Power Source

The 5033 provides 3 independent channels of 0 to 20V DC, settable in 10µV steps. A 2A drive capability allows up to 40W per channel to be output. A precision current shunt is incorporated in each channel and allows read-back of the current supplied. The high resolution on the voltage and current make this power source ideal for calorimetry and other applications requiring very accurate control of DC power input. Power can be controlled to better than a few ppm.

by quote only

The 5033 provides 3 independent channels of 0 to 20V DC, settable in 10µV steps. A 2A dri...

View Product
