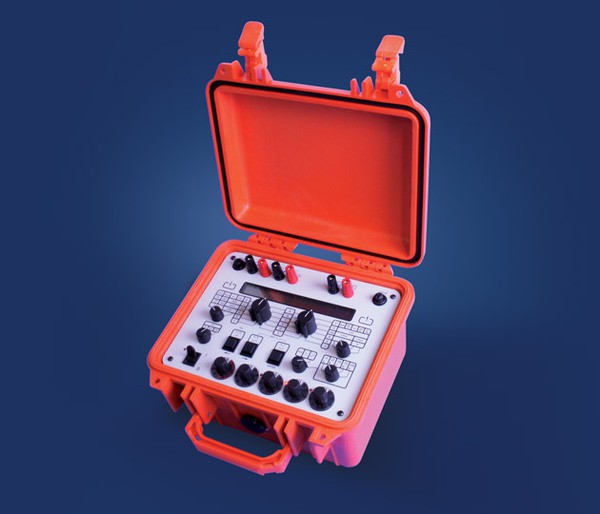

Time Electronics 7050 - Multifunction Process Calibrator

The 7050 Process Calibrator combines the essential functions of measurement and simulation of volts, millivolts, milliamps, and ohms with the direct readout simulation of thermocouples and RTD’s in °C or °F units.The instrument is microprocessor based and housed in a rugged case designed for use in the field. Input and Output functions are displayed simultaneously and the switch controls allow for easy and precise operation.

by quote only

The 7050 Process Calibrator combines the essential functions of measurement and simulation...

View Product

Time Electronics 1077 - Milliamp Transducer Simulator

A multi-purpose handheld test instrument that can be used as an adjustable current load, adjustable power supply, or precision current source. The 1077 is commonly used for the testing and simulation of milliamp transducer systems. Compact and rugged design make the 1077 ideal for use in both the lab and field, with protective rubber cover to increase durability. The instrument is built to withstand arduous use, meaning it is well suited to process control applications.

by quote only

A multi-purpose handheld test instrument that can be used as an adjustable current load, a...

View Product

Time Electronics 1048 - Voltage/Current/Loop Calibrator

A portable instrument that operates as a current and voltage source and a multi-purpose loop calibrator. High performance and simple operation make it suitable for R&D, service, process control engineers, and calibration technicians. As a versatile handheld calibrator, the source and measure capabilities with 0.02% accuracy mean the 1048 is a compact solution for most simulation and test applications.

by quote only

A portable instrument that operates as a current and voltage source and a multi-purpose lo...

View Product

Time Electronics 1030 - Voltage and Current Source

The 1030 MicroCal is a portable voltage and current calibrator for general purpose signal injection. It is suitable for voltage and current loop signal simulation as well as thermocouple simulation. Being both cost-effective and simple operation make the 1030 a popular instrument that is used in various applications across industries. The compact (115 x 62 x 55mm) and durable design makes it ideal for use in both the lab and field, with carry case supplied as standard. Typical battery life is 60 hours. An optional rechargeable battery pack is available, with mains charger that connects via a socket on the top of the unit.

by quote only

The 1030 MicroCal is a portable voltage and current calibrator for general purpose signal ...

View Product

Time Electronics 1024 - DC Current Calibrator

A precision DC current source for calibration and test applications from nanoamp levels to 100mA. The 1024 is a solid state battery powered instrument which is easily portable and convenient for laboratory, field, or industrial use. It incorporates many of the well-proven circuit techniques of the Time Electronics Type 1010 DC Voltage Calibrator.

by quote only

A precision DC current source for calibration and test applications from nanoamp levels to...

View Product

Time Electronics 1021 - DC Current Source

The 1021 is a precision DC current source suitable for calibration and test applications from micro-amp levels up to 100mA. Three output ranges are available; 0 to 99.99mA in 10μA steps, 0 to 9.999mA in 1μA steps, and 0 to 999.9μA in 0.1μA steps. Output voltage is adjustable between 14 and 40 volts, with a maximum output power of 2.4 watts. The functionality of the 1021 is based on the popular Time Electronics 1007 millivolt source, incorporating many of the well-proven features that enable fast and simple operation. Useful attributes include an LED voltage limit indicator, that shows the user when the 1021 is unable to supply sufficient drive voltage to maintain the set output current. The instrument is also short circuit and overload protected.

by quote only

The 1021 is a precision DC current source suitable for calibration and test applications f...

View Product

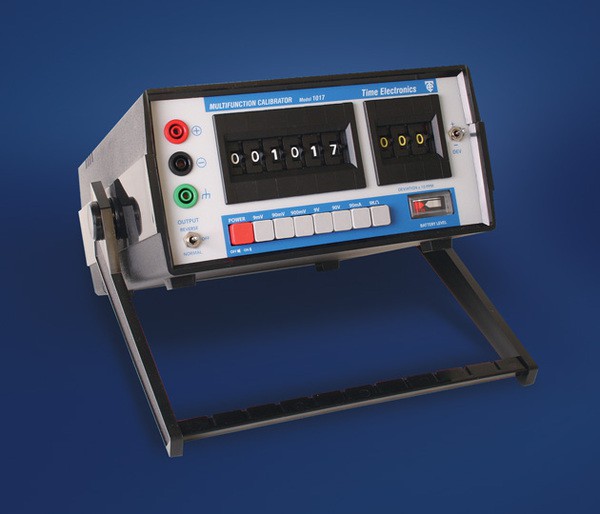

Time Electronics 1017 - Voltage/Current/Resistance Calibrator

A high performance portable multifunction calibrator with voltage, current, and resistance ranges. The 1017 combines precision with simple operation, making it suitable for use in the workshop or field. Constructed in a compact and durable plastic case with a tilt stand/carry handle it takes up minimal bench space and is easily transportable. Five DC voltage ranges from 10mV to 100V full scale are available, each with a 6-digit (1ppm) resolution. The DC current range is 100mA full scale with a 100nA (1ppm) resolution. Resistance from 0.01Ω to 10kΩ is available 0.01Ω steps.

by quote only

A high performance portable multifunction calibrator with voltage, current, and resistance...

View Product

Time Electronics 1010 - DC Voltage Calibrator

A highly stable and accurate mains or battery powered calibrator for applications requiring a precision voltage source of low internal resistance. It has five ranges up to 10V with a resolution up to 0.01μV. The compact and robust design make it easily portable and well suited to laboratory, field and industrial use. A carry case is available to house the instrument for transport or storage. Voltage outputs are set by selecting the range switch and dialling up the desired value on the thumbwheel switch. Output polarity may be selected using the normal/off/reverse switch.

by quote only

A highly stable and accurate mains or battery powered calibrator for applications requirin...

View Product

Time Electronics 1007 - DC Millivolt Potentiometer & Calibrator

The 1007 is a handheld calibrator that can be used for potentiometric voltage measurement in addition to its operation as a millivolt source. The null zero and sensitivity are adjustable via front panel controls. Maximum sensitivity enables null balance to resolve 3 microvolt. Three output ranges are provided to give adjustable output values from 1μV to 1V with a basic 0.02% accuracy. For signal injection, the operator needs to switch on, check the battery condition, select the range, and set the required voltage using the thumbwheel switches. The 1007 uses a precision reference diode and low temperature coefficient resistors to give a highly stable output.

by quote only

The 1007 is a handheld calibrator that can be used for potentiometric voltage measurement ...

View Product

Time Electronics 1006 - DC Millivolt Source

The 1006 is an accurate low cost millivolt source suitable for voltage injection applications. Three output ranges are provided to give adjustable output values from 1µV to 1V with a basic 0.02% accuracy. For signal injection, the operator needs to switch on, check the battery condition, select the range, and set the required voltage using the thumbwheel switches. The 1006 uses a precision reference diode and low temperature coefficient resistors to give a highly stable output.

by quote only

The 1006 is an accurate low cost millivolt source suitable for voltage injection applicati...

View Product
