CalBench Calibration Benches - External Equipment

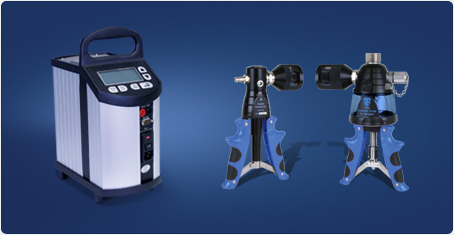

CalBench can be accompanied by a variety of external instruments, tools, and add-ons that enhance the system and provide a solution to additional user requirements.
Items include supporting connectivity kits for modules, pressure pumps, dry block calibrators, solder stations and more. For line pressure supply to the bench compressors, vacuum pumps, pressure boosters, and air preparation kits are available.
Pressure Tools and Instruments
Pressure Pumps and Gauges
|
7090 |
Pneumatic Hand Pump (-950mbar to 40bar). View Data Sheet |
|
7095 |
Hydraulic Hand Pump (0 to 700bar). View Data Sheet |
|
7194 |
Benchtop pneumatic pump (0.95bar vacuum to 100bar). View Data Sheet |
|
7195 |
Benchtop hydraulic pump (0.9bar vacuum to 600bar). View Data Sheet |
|
7091 |
Digital Pressure Gauge (Vacuum to 40bar, 0.2% Accuracy). View Data Sheet |
|
7094 |
Digital Pressure Gauge (0 to 100bar, 0.2% Accuracy). View Data Sheet |
|
7078 |
Auto Ranging Digital Gauge (Vacuum to 200bar, 0.1% Accuracy). View Data Sheet |
|
7096 |
Digital Pressure Gauge (0 to 700bar, 0.2% Accuracy). View Data Sheet |
|
7149 |
Electrical Vacuum Pump. View Data Sheet |
Dead Weight Testers
|
7890 |
Hydraulic Dead Weight Tester (1 to 700bar, 0.015% accuracy) |
|
7891 |
Hydraulic Dead Weight Tester (1 to 1200bar, 0.015% accuracy) |
|
7892 |
Hydraulic Dead Weight Tester (1 to 2600bar, 0.02% accuracy) |
|
7893 |
Pneumatic Dead Weight Tester (1 to 120bar, 0.015% accuracy) |
Fittings and Adaptor Kits
|
7073 |
Low pressure connection/adaptor kit (< 20bar). View Data Sheet |
|
7097 |
BSP to Minimess Adaptor Test Kit. View Data Sheet |
|
7198 |
Adaptors and Fittings Kit. View Data Sheet |
Compressors, Air Amplifiers, and Gas Boosters
|
7173 |
9bar Heavy Duty Compressor . View Data Sheet |
|
7174 |
10bar Silent Running Compressor. View Data Sheet |
|
7175 |
Double End Air Amplifier System. Regulated output pressure up to 34bar. Requires 7bar min line pressure. |
| 7176 | Gas Booster Power Unit (for high output pressure). Versions available for 200 - 600bar output. Requires 8bar min line pressure. |
Process Instruments
Dry Block Calibrators
| Model | Temp Range | Heating Time | Accuracy | Stability | Immersion Depth | Insert Diameter |
|---|---|---|---|---|---|---|
|
7070 |
-17 to 140°C |
15 min |
0.4°C |
0.05°C |
115mm |
19mm |
| 7071 | 33 to 320°C | 4 min | 0.5°C | 0.1°C | 110mm | 26mm |
| 7072 | 33 to 650°C | 20 min | 0.9°C | 0.1°C | 110mm | 26mm |
Repair / Maintenance Equipment and Accessories
|
7144 |
Standard Benchtop Solder Station. View Data Sheet |
|
7145 |
Advanced Benchtop Solder Station and Rework Kit. View Data Sheet |
| 7147 | Benchtop fume extraction kit |
|
7150 |
Heavy Duty Vice with turntable (jaw width: 100, 125, or 150mm). View Data Sheet |
|
7180 |
Table top Circuit Board Holder. View Data Sheet |
|
7181 |
Magnifying Lamp (175mm diameter, 1.75x magnifying lens). View Data Sheet |
| 7154 | Benchtop turntable with locking mechanism |
|
7183 |
Electronics service case (82 tools). View Data Sheet |
| 7166 | Tool Box - Heavy duty steel (W690 x D360 x H312mm) |
ESD Equipment
Standard ESD Equipment Options
| 7185 | Melamine Faced ESD Worktop for bench. Chipboard, conductive core, 3mm ABS edges, antistatic, scratch, impact and stain resistant. |
|
7186 |
ESD Workstation Kit for CalBench: Includes benchtop mat, signage, bonding plugs, wrist strap and leads. View Data Sheet |
Additional items upon request, including:
- Grounding products
- Anti-static wrist wraps
- Anti-static labels, tapes, and bags
- Heel and toe grounders
- Static test meters
Other Calibration
Additional Calibration Tools and Test Kits
|
7151 |
Vernier and Micrometer Calibration Kit. View Data Sheet |
|
7179A |
Test Weight Set (Stainless steel F1 class, 6110g total weight): |
|
7179B |
Test Weight Set (Stainless steel F1 class, 11110g total weight): |
